9038CG34Z20 | Float Switch: 575 VAC 1HP Type C + Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9038CG34Z20

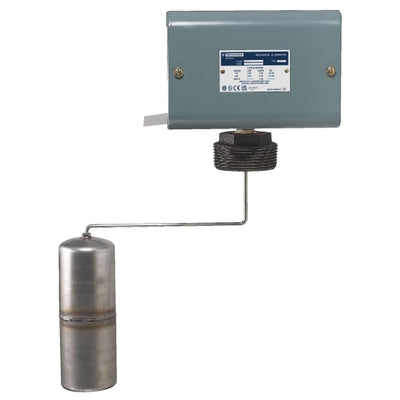

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9038CG34Z20

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9038CG34Z20 Documents

Datasheet More Info

Overview

Details for 9038CG34Z20

Schneider Electric (Square D) 575V Float Switch (9038CG34Z20) The Schneider Electric (Square D) 9038CG34Z20 is a float switch designed for use in liquid level control applications. This 575V float switch features a 1HP rating and a compact design, making it ideal for use in a variety of industrial settings. The switch is constructed with durable materials and is designed to provide reliable performance in demanding applications. Key Features * 575V voltage rating * 1HP rating * Compact design * Durable construction * Reliable performance Applications The Schneider Electric (Square D) 9038CG34Z20 float switch is suitable for use in a variety of liquid level control applications, including: * Industrial machinery * Wastewater treatment * Water storage * Food and beverage processing Our HVAC supply store - We offer the best prices and fast shipping for your products!

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Closed tank with bushing
device short name: 9038C
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 8 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…121 °C
Sea water at specific gravity of 0.85 in or higher -18…121 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…121 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…121 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 4...7.75 in adjustable
Float position: Left
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Cast iron
Stainless steel 316
Viton
Stainlesss steel 304
Yellow brass
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 2.81 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float
Float switch
Rod
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 29.871 cm
Package 1 Width: 11.76 cm
Package 1 Length: 75.872 cm
Package 1 Weight: 4.078 kg
Warranty: 18 months
