9038CG33Z20 | Float Switch: 575 VAC 1HP Type C + Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9038CG33Z20

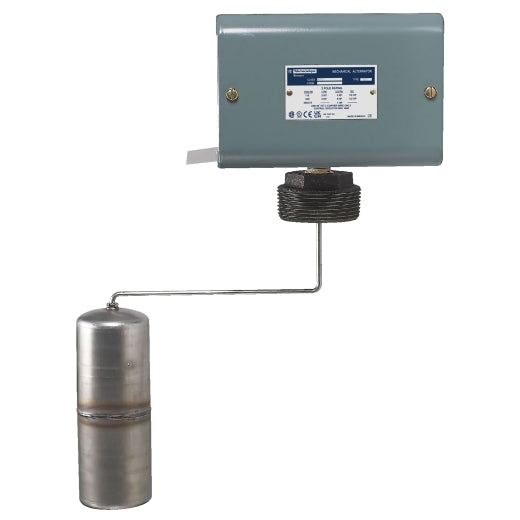

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9038CG33Z20

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9038CG33Z20 Documents

Datasheet More Info

Overview

Details for 9038CG33Z20

ALT. FLOAT SW W/VITON PACKING The Schneider Electric (Square D) 9038CG33Z20 is an alternative float switch featuring Viton packing. This switch is engineered for demanding applications and provides reliable liquid level control. Key Features: * Viton packing ensures superior chemical resistance and durability * Versatile design for use in various liquids * Dependable performance for accurate level detection * Robust construction for extended service life * Meets industry standards for safety and reliability Applications: * Industrial liquid level control systems * Chemical and petrochemical processing * Water and wastewater treatment facilities * Food and beverage production Our HVAC supply store: Your Trusted Partner for Industrial Electrical Equipment. Order now and enjoy the best prices and fast shipping!

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Closed tank with bushing
device short name: 9038C
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 8 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…121 °C
Sea water at specific gravity of 0.85 in or higher -18…121 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…121 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…121 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 4...7.75 in adjustable
Float position: Right
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Yellow brass
Stainless steel 316
Stainlesss steel 304
Viton
Cast iron
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 3.94 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float
Rod
Float switch
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 23.9 cm
Package 1 Width: 27.7 cm
Package 1 Length: 31.5 cm
Package 1 Weight: 3.89 kg
Warranty: 18 months
