9038CG32Z20 | 575V 1HP FLG FLOAT SW,DPST,SS | Schneider Electric (Square D)

Schneider Electric (Square D) | 9038CG32Z20

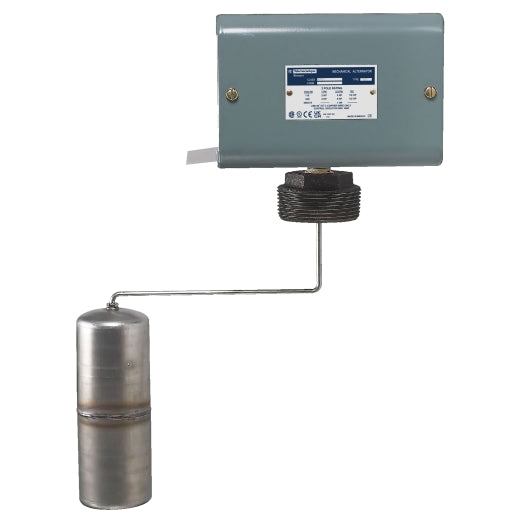

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9038CG32Z20

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9038CG32Z20 Documents

Datasheet More Info

Overview

Details for 9038CG32Z20

575V 1HP FLG FLOAT SW,DPST,SS [sku] Schneider Electric (Square D) 575V 1HP FLG FLOAT SW,DPST,SS is a robust and reliable float switch designed for use in industrial applications. It features a compact design, making it suitable for installations where space is limited. The switch is also constructed using high-quality materials, ensuring durability and performance in demanding environments. Key Features: - Voltage: 575V - Horsepower: 1HP - Type: FLG FLOAT SW - Poles: DPST - Enclosure: SS Benefits: - Reliable operation in demanding environments - Compact design for easy installation - Durable construction for long-lasting performance Applications: - Industrial liquid level control systems - Pumps and other liquid handling equipment - Storage tanks and reservoirs Our HVAC supply store offers this 575V 1HP FLG FLOAT SW,DPST,SS at the best prices and with fast shipping!

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Closed tank with bushing
device short name: 9038C
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 8 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…121 °C
Sea water at specific gravity of 0.85 in or higher -18…121 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…121 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…121 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 6.5...13 in adjustable
Float position: Left
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Cast iron
Yellow brass
Viton
Stainless steel 316
Stainlesss steel 304
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Rod
Float
Float switch
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 29.871 cm
Package 1 Width: 11.76 cm
Package 1 Length: 75.872 cm
Package 1 Weight: 4.023 kg
Warranty: 18 months
