Brand: Schneider Electric (Square D)SKU: 9038CG32

List Price
~~$1,747.00~~

$582.17

Availability: IN STOCK

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

9038CG32 | Float Switch: 575 VAC 1HP Type C + Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9038CG32

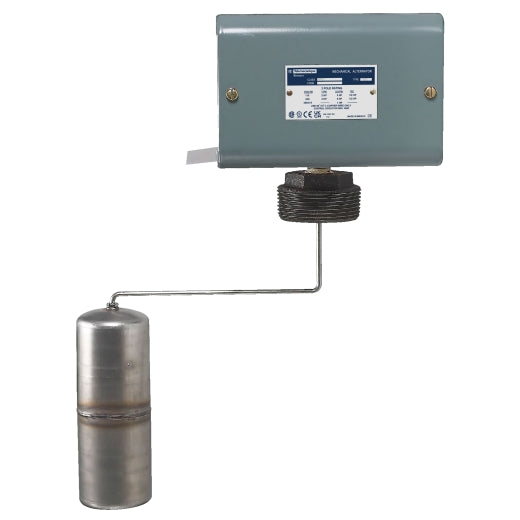

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9038CG32

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9038CG32 Documents

Datasheet More Info

Overview

Details for 9038CG32

Float Switch - Mechanical Alternators: 9038CG32 from Schneider Electric (Square D)The 9038CG32 float switch from Schneider Electric (Square D) is a mechanical float switch designed specifically for use with alternators. This switch features a rugged construction with a corrosion-resistant housing and a reliable mechanical design. It provides accurate and dependable level detection for alternator applications. This float switch is designed to mount directly onto the alternator, ensuring a secure and precise installation. The switch utilizes a mechanical float mechanism to detect the liquid level, providing a reliable and accurate response. It has a wide operating range and can handle a variety of liquid types, making it suitable for various alternator applications. The key features of the 9038CG32 float switch include: Rugged construction with a corrosion-resistant housing. Mechanical float mechanism for reliable and accurate level detection. Wide operating range suitable for various alternator applications. Easy installation directly onto the alternator. Dependable performance for critical alternator applications.Our HVAC supply store offers the best prices and fast shipping for your industrial needs. Shop now!

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Closed tank with bushing
device short name: 9038C
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 8 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 6.5...13 in adjustable
Float position: Left
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Yellow brass
Stainless steel 316
Cast iron
Stainlesss steel 304
Nitrile (Buna-N) or equivalent rubber
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float switch
Float
Rod
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 23.9 cm
Package 1 Width: 28.4 cm
Package 1 Length: 30.7 cm
Package 1 Weight: 3.81 kg
Warranty: 18 months
