9038CG31 | MECH ALTERNATOR 575 VAC 1HP Type C | Schneider Electric (Square D)

Schneider Electric (Square D) | 9038CG31

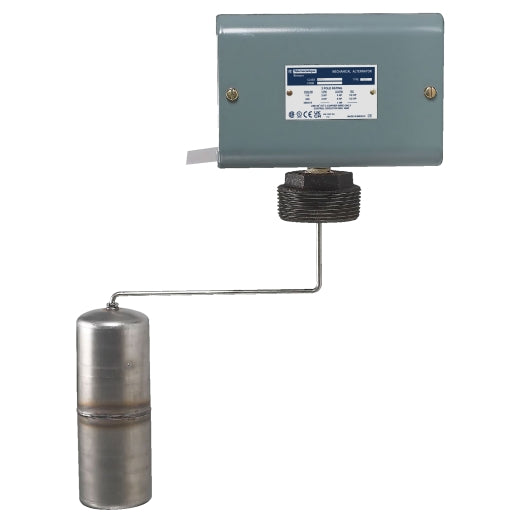

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9038CG31

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9038CG31 Documents

Datasheet More Info

Overview

Details for 9038CG31

Closed Tank Alternate Open/Fall: Schneider Electric 9038CG31 The Schneider Electric (Square D) 9038CG31 Closed Tank Alternate Open/Fall is a reliable and efficient control component designed to manage fluid flow in industrial systems. This highly durable component is constructed to provide exceptional performance, making it a preferred choice for demanding applications. Crafted with precision, this closed tank alternate open/fall features a robust design that ensures longevity and resistance to wear. Its compact size makes it suitable for various applications where space is limited. The device is designed to operate with a wide range of pressures, ensuring compatibility with diverse system requirements. The Schneider Electric 9038CG31 Closed Tank Alternate Open/Fall is ideal for applications requiring precise control of fluid flow, such as in hydraulic systems, fluid power systems, and industrial automation setups. Its ability to withstand high pressures makes it suitable for demanding environments, ensuring reliable performance even under strenuous conditions. Our HVAC supply store offers the best prices and fast shipping for this product, making it an economical and convenient choice for your industrial needs. Trust Our HVAC supply store as your reliable partner for high-quality industrial products and exceptional customer service.

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Closed tank with bushing
device short name: 9038C
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 8 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 6.5...13 in adjustable
Float position: Right
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Stainlesss steel 304
Yellow brass
Nitrile (Buna-N) or equivalent rubber
Stainless steel 316
Cast iron
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Rod
Float
Float switch
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 23.6 cm
Package 1 Width: 27.7 cm
Package 1 Length: 31.2 cm
Package 1 Weight: 3.9 kg
Warranty: 18 months
