9038AG1N4 | Float Switch: 575 VAC 1HP Type A + Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9038AG1N4

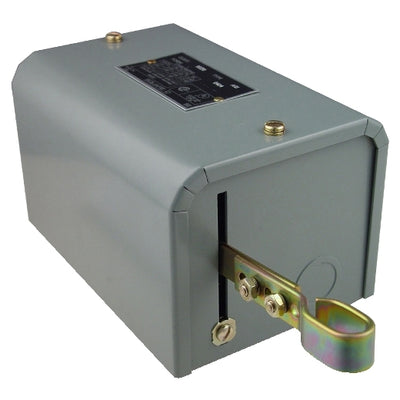

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9038AG1N4

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9038AG1N4 Documents

Datasheet More Info

Overview

Details for 9038AG1N4

Introducing the NCO-9038AG1N4 DualPumpSwitch from Schneider Electric (Square D), engineered for industrial pumping systems. This advanced switch is the perfect solution for controlling dual pumps, ensuring reliable and efficient operation of your critical systems. The NCO-9038AG1N4 features dual alternators for automatic pump rotation, maximizing pump life and minimizing maintenance downtime. Its compact design with a hinged cover allows for easy installation and access to the control components. The switch incorporates advanced electronic circuitry to provide precise pump control and protection against abnormal operating conditions. This switch is compatible with a wide range of pump systems and applications, including wastewater treatment, water supply, and industrial processes. Its robust construction and corrosion-resistant enclosure make it ideal for harsh industrial environments. Key Features: * Dual alternators for automatic pump rotation * Advanced electronic circuitry for precise pump control * Protection against abnormal operating conditions * Compact design with hinged cover for easy installation * Compatible with a wide range of pump systems and applications Enhance your pumping system's reliability and efficiency with the NCO-9038AG1N4 DualPumpSwitch from our HVAC supply store. Order now and experience the superior performance and peace of mind that comes with quality industrial products!

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Open tank
device short name: 9038A
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For open tank
device mounting: Pedestal
Cable entry number: 4 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher
Sea water at specific gravity of 0.85 in or higher
Hydraulic oil at specific gravity of 0.85 in or higher
Corrosive fluid at specific gravity of 0.85 in or higher
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: Variable adjustable
Float position: Any
Float rod angle: Vertical
Force down to trip: 20 ozf at minimum adjustment
17 ozf at maximum adjustment
Force up to trip: 18 ozf at minimum adjustment
16 ozf at maximum adjustment
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: Without
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Terminals description ISO n°1: Line-load-load-line
Factory modification: Two-level non-alternating unit
kit composition: Rod and float are to be choosen in accessories
Float switch
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: CSA file LR25490
UL listed file E12158
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 29.871 cm
Package 1 Width: 11.76 cm
Package 1 Length: 75.872 cm
Package 1 Weight: 2.812 kg
Warranty: 18 months
