9037HG36Z20 | Float Switch: 575 VAC 1HP H + Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9037HG36Z20

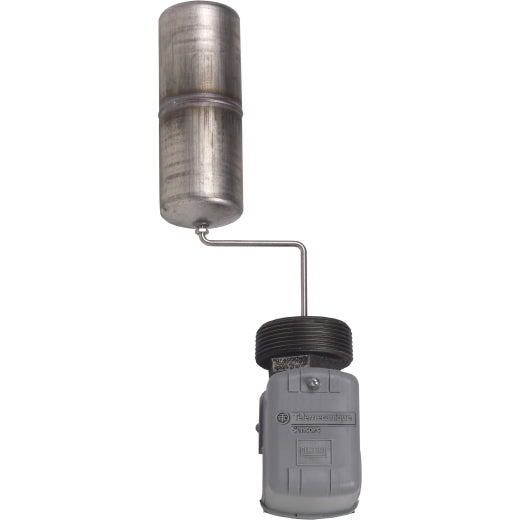

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9037HG36Z20

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9037HG36Z20 Documents

Datasheet More Info

Overview

Details for 9037HG36Z20

The Schneider Electric (Square D) FLOAT SWITCH W/ VITON (9037HG36Z20) is an essential component for liquid level sensing applications. It utilizes a Viton float for compatibility with a wide range of liquids and ensures accurate level detection. The switch operates on a single-pole double-throw (SPDT) mechanism, providing both normally open (NO) and normally closed (NC) contacts for versatile control. Its compact design and durable construction make it ideal for use in pumps, tanks, and other liquid level control systems. Key Features: * Viton float for compatibility with various liquids * Single-pole double-throw (SPDT) mechanism with NO and NC contacts * Compact design for easy installation * Durable construction for long-lasting operation Applications: * Liquid level sensing in pumps, tanks, and other vessels * Industrial automation and control systems * Chemical and petrochemical industries * Water treatment facilities Our HVAC supply store offers the Schneider Electric (Square D) FLOAT SWITCH W/ VITON at competitive prices with fast shipping. Choose Our HVAC supply store for your industrial electrical supply needs!

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Closed tank
device short name: 9037H
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…121 °C
Sea water at specific gravity of 0.85 in or higher -18…121 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…121 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…121 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 2.5...5 in adjustable
Float position: Left
Float rod angle: 90°
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Stainlesss steel 304
Yellow brass
Cast iron
Stainless steel 316
Viton
Enclosure material: Polypropylene or equivalent
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 2.01 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float switch
Float
Rod
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: CSA file LR25490
UL listed file E12158
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 19.6 cm
Package 1 Width: 18.0 cm
Package 1 Length: 29.7 cm
Package 1 Weight: 1.94 kg
Warranty: 18 months
