9037HG36LZ20 | Float Switch: 575 VAC 1HP H + Options | Schneider Electric (Square D)

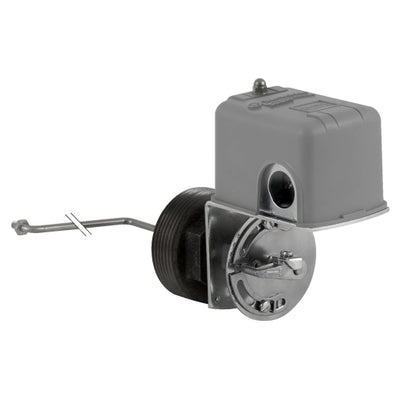

Schneider Electric (Square D) | 9037HG36LZ20

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9037HG36LZ20

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9037HG36LZ20 Documents

Datasheet More Info

Overview

Details for 9037HG36LZ20

9037HG36LZ20 Float Switch by Schneider Electric (Square D) The 9037HG36LZ20 Float Switch is a reliable and durable industrial-grade sensing device designed to monitor liquid levels in various applications. This switch features a Viton seal, making it suitable for harsh environments and compatible with a wide range of fluids. Viton is known for its exceptional resistance to heat, chemicals, and ozone, ensuring extended service life even under demanding conditions. The switch employs a float mechanism that triggers the switch when the liquid level reaches a predetermined point, providing accurate level detection. The 9037HG36LZ20 Float Switch is an essential component for a range of industrial applications, including: - Level control in tanks, reservoirs, and other liquid containers - Pump and valve control based on liquid level - Liquid level alarms to prevent overfills or dry-running conditions - Fluid monitoring in chemical processing, water treatment, and manufacturing Order the 9037HG36LZ20 Float Switch today from our HVAC supply store for the best prices and fast shipping!

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Closed tank
device short name: 9037H
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…121 °C
Sea water at specific gravity of 0.85 in or higher -18…121 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…121 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…121 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 2.5...5 in adjustable
Float position: Left
Float rod angle: 90°
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Stainlesss steel 304
Viton
Stainless steel 316
Cast iron
Yellow brass
Enclosure material: Polypropylene or equivalent
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 2.18 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Omit float
kit composition: Float switch
Float
Rod
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 20.1 cm
Package 1 Width: 17.8 cm
Package 1 Length: 29.5 cm
Package 1 Weight: 1.61 kg
Warranty: 18 months
