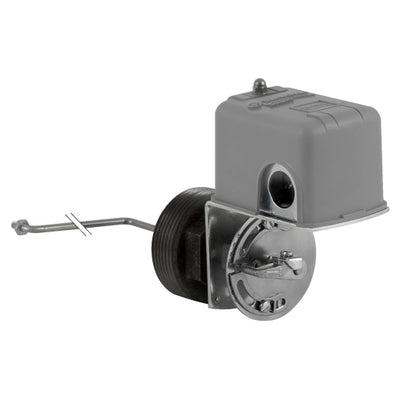

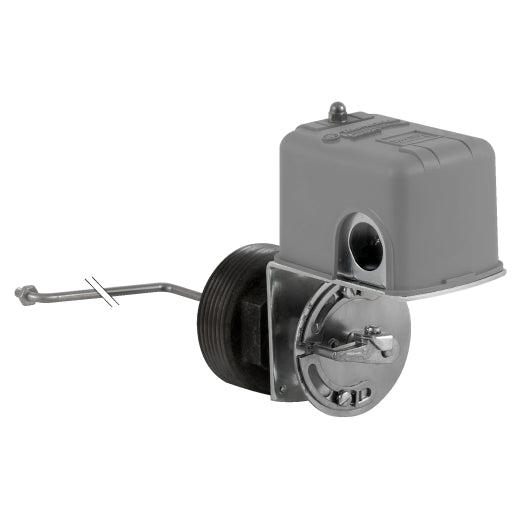

9037HG32LZ20 | Float Switch: 575 VAC 2HP H + Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9037HG32LZ20

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9037HG32LZ20

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9037HG32LZ20 Documents

Datasheet More Info

Overview

Details for 9037HG32LZ20

2.5" FLT SWT LESS FLT W/VITON: Schneider Electric (Square D) [sku] This 2.5" FLT SWT LESS FLT W/VITON from Schneider Electric (Square D) is designed for industrial applications. Its durable construction and reliable performance make it a valuable asset for powering various equipment. Key Features: * 2.5" size * FLT SWT LESS FLT * VITON construction Shop now at our HVAC supply store for the best prices and fast shipping on all your industrial supply needs!

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Closed tank
device short name: 9037H
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…121 °C
Sea water at specific gravity of 0.85 in or higher -18…121 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…121 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…121 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 6...11.5 in adjustable
Float position: Left
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Stainlesss steel 304
Stainless steel 316
Yellow brass
Viton
Cast iron
Enclosure material: Polypropylene or equivalent
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.91 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Omit float
kit composition: Rod
Float switch
Float
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 20.3 cm
Package 1 Width: 24.4 cm
Package 1 Length: 34.5 cm
Package 1 Weight: 1.82 kg
Warranty: 18 months
