9037HG32L | Float Switch: 575 VAC 2HP H + Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9037HG32L

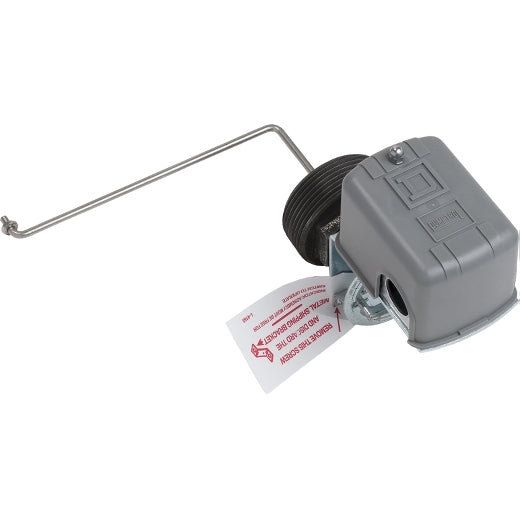

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9037HG32L

Documents and manuals

Schneider Electric (Square D) 9037HG32L Documents

Overview

Details for 9037HG32L

9037HG32L FLOAT SWITCH 575VAC 2HP H+OPTFLOAT SWITCH 575VAC 2HP H+OPT Schneider Electric (Square D) 9037HG32L Float Switch is a high-quality electrical component designed to control liquid levels in various industrial and commercial applications. This robust switch offers reliable operation and enhanced safety features. With a voltage rating of 575VAC and a horsepower rating of 2HP, it can handle demanding applications effectively. The H+OPT designation indicates additional options or features that enhance the switch's functionality. Constructed with durable materials, the 9037HG32L Float Switch ensures long-lasting performance in harsh environments. Its float design provides accurate and responsive liquid level detection, activating or deactivating the switch as needed. This switch is ideally suited for applications such as sump pumps, level control in tanks and reservoirs, and other industrial processes that require precise liquid level monitoring. Our HVAC supply store offers the best prices and fast shipping for your industrial supply needs. Shop now and experience the convenience and reliability of our services.

Specifications

Range of product
Square D Pumptrol
Product or component type
Float switch
device application
Closed tank
device short name
9037H
Product specific application
Liquid level control
electrical circuit type
Power circuit
Quantity per set
Set of 1
Type of packing
Individual
Product destination
For closed tank
device mounting
Screw-in bushing
Cable entry number
3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition
2 NC, snap action, DPST-DB, Form YY
Controlled fluid
Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW
1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation
Contacts close on liquid rise
Float movement
6...11.5 in adjustable
Float position
Left
Float rod angle
90° (offset)
Short-circuit protection
20 A cartridge fuse, type gG
Local signalling
With external pointer
Materials in contact with fluid
Cast iron
Stainlesss steel 304
Yellow brass
Nitrile (Buna-N) or equivalent rubber
Stainless steel 316
Enclosure material
Polypropylene or equivalent
Operating position
Vertical position only
Electrical durability
100 cycles, operating rate <60 cyc/mn
Mechanical durability
300 cycles
Terminal block type
4 terminals
maximum operating rate
60 cyc/mn
[Ui] rated insulation voltage
575 V conforming to UL 508
Net weight
1.85 kg
Terminals description ISO n°1
Line-load-load-line
Factory modification
Omit float
kit composition
Float
Float switch
Rod
Standards
CE
UL 508
Ambient air temperature for operation
-30…104 °C
Ambient air temperature for storage
-30…104 °C
NEMA degree of protection
NEMA 1 conforming to UL 50
product certifications
UL listed file E12158
CSA file LR25490
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
48.387 cm
Package 1 Width
19.05 cm
Package 1 Length
122.903 cm
Package 1 Weight
1.846 kg
Warranty
18 months
