9037EW9 | Float Switch: 575 VAC 1HP E + Options | Schneider Electric (Square D)

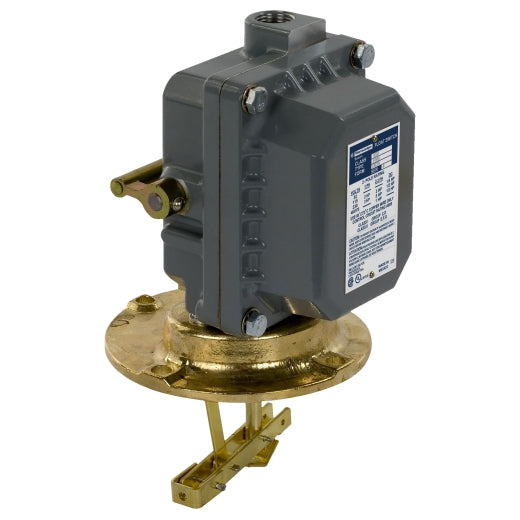

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9037EW9

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9037EW9 Documents

Datasheet More Info

Overview

Details for 9037EW9

Schneider Electric (Square D) FLOAT SWITCH (9037EW9) The Schneider Electric (Square D) FLOAT SWITCH (9037EW9) is a versatile and reliable solution for liquid level monitoring and control in industrial and commercial applications. This compact and robust switch operates on a simple float mechanism, providing precise level detection and switching capabilities. Key Features: * Durable construction ensures longevity and reliability in demanding environments * Adjustable float level enables customization for specific liquid level requirements * Normally open (NO) or normally closed (NC) operation provides versatility in control applications * Mercury-free design meets environmental safety standards * Compact size and easy installation simplify integration into various systems Applications: * Level control in tanks, reservoirs, and sumps * Pump and valve actuation based on liquid level changes * Overflow and low-level alarm systems * Liquid level monitoring in industrial and manufacturing processes Technical Specifications: * SKU: 9037EW9 * Brand: Schneider Electric (Square D) * Type: FLOAT SWITCH * Operation: Float mechanism * Contact Type: Normally open (NO) or normally closed (NC) * Material: Durable plastic Shop our HVAC supply store today for the best prices and fast shipping on the Schneider Electric (Square D) FLOAT SWITCH (9037EW9). Enhance your liquid level control systems with reliable and efficient monitoring solutions.

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Closed tank
device short name: 9037E
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Flange
Cable entry number: 2 conduit entries for 3/4"-14 NPT conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: Variable fixed
Float position: Any
Float rod angle: Horizontal
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: Without
Materials in contact with fluid: Stainlesss steel 304
Stainless steel 316
Yellow brass
Nitrile (Buna-N) or equivalent rubber
Enclosure material: Cast aluminium
Operating position: Vertical or horizontal position
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 3.13 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float switch
Rod and float are to be choosen in accessories
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 4 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 48.387 cm
Package 1 Width: 19.05 cm
Package 1 Length: 122.903 cm
Package 1 Weight: 2.985 kg
Warranty: 18 months
