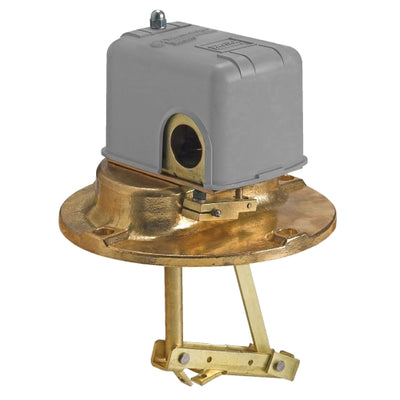

9037EG9 | Float Switch: 575 VAC 1HP E + Options | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9037EG9

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9037EG9 Documents

Datasheet More Info

Overview

Details for 9037EG9

9037EG9 Schneider Electric (Square D) Float Switch Detect liquid levels with precision using the 9037EG9 Float Switch from Schneider Electric (Square D). This reliable switch offers dependable liquid level detection for industrial applications. Key Features: * Durable construction ensures reliable performance in harsh environments. * Convenient design allows for easy installation and maintenance. * Switch rating of 15 Amps at 120 VAC and 30 Amps at 240 VAC. * Adjustable float switch for customized liquid level detection. Applications: * Control pumps, alarms, and other equipment based on liquid levels. * Monitor fluid levels in tanks, sumps, and reservoirs. * Ensure proper operation of water treatment systems and industrial machinery. Shop our HVAC supply store for the best prices and fast shipping on all your industrial needs!

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Closed tank
device short name: 9037E
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Flange
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: Variable fixed
Float position: Any
Float rod angle: Horizontal
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: Without
Materials in contact with fluid: Stainless steel 316
Stainlesss steel 304
Yellow brass
Nitrile (Buna-N) or equivalent rubber
Enclosure material: Polypropylene or equivalent
Operating position: Vertical or horizontal position
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 2.08 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Rod and float are to be choosen in accessories
Float switch
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: CSA file LR25490
UL listed file E12158
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 18.8 cm
Package 1 Width: 18.8 cm
Package 1 Length: 35.8 cm
Package 1 Weight: 1.9 kg
Warranty: 18 months
