Brand: Schneider Electric (Square D)SKU: 9036DW31

List Price
~~$1,939.00~~

$646.42

Availability: IN STOCK

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

9036DW31 | Float Switch: 230 VAC 1HP D + Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9036DW31

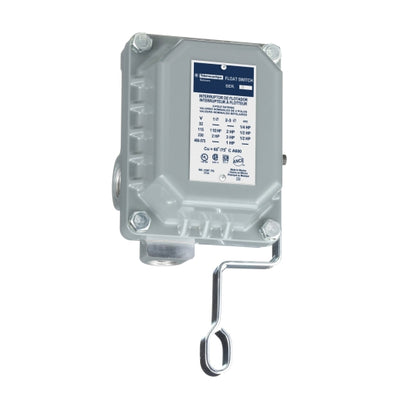

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9036DW31

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9036DW31 Documents

Datasheet More Info

Overview

Details for 9036DW31

The Schneider Electric (Square D) 9036DW31 is a 230VAC float switch commonly used in industrial settings to control liquid levels in tanks, sumps, and reservoirs. It employs a float mechanism that triggers an electrical contact when the liquid level rises or falls to a preset point. This float switch is ideal for applications where precise liquid level monitoring and control are crucial. Key Features: - Voltage: 230VAC - Float mechanism for accurate liquid level detection - Electrical contact triggers when liquid level reaches a preset point - Durable construction for reliable performance Benefits: - Ensures accurate liquid level monitoring and control - Helps prevent overfilling or dry-running of tanks and reservoirs - Provides reliable operation in demanding industrial environments - Improves safety and efficiency in liquid handling processes Applications: - Level control in tanks, sumps, and reservoirs - Liquid level monitoring in industrial processes - Water management systems - Chemical storage and handling facilities - Wastewater treatment plants Shop now at our HVAC supply store for the best prices, fast shipping, and reliable products!

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Open tank general purpose
device short name: 9036D
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For open tank or sump
device mounting: Pedestal
Cable entry number: 2 conduit entries for 3/4"-14 NPT conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher
Sea water at specific gravity of 0.85 in or higher
Hydraulic oil at specific gravity of 0.85 in or higher
Corrosive fluid at specific gravity of 0.85 in or higher
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: Variable adjustable
Float position: Any
Float rod angle: Vertical
Force down to trip: 8 ozf
Force up to trip: 8 ozf
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: Without
Enclosure material: Cast aluminium
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.89 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float switch
Rod and float are to be choosen in accessories
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 4 conforming to UL 50
product certifications: CSA file LR25490
UL listed file E12158
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 16.5 cm
Package 1 Width: 19.1 cm
Package 1 Length: 28.4 cm
Package 1 Weight: 1.78 kg
Warranty: 18 months
