Brand: Schneider Electric (Square D)SKU: 9036DG2

List Price
~~$251.00~~

$83.79

Availability: IN STOCK

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

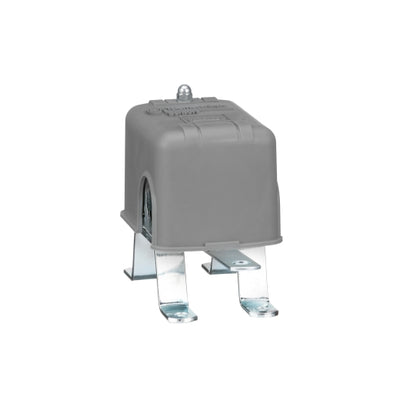

9036DG2 | Float Switch: 575 VAC 1HP D + Options | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9036DG2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9036DG2 Documents

Datasheet More Info

Overview

Details for 9036DG2

9036DG2 Square D 2 Pole Close on Rise Float Switch. Designed to make or break an electrical circuit in response to the change in liquid level in a tank or basin. The switch is mounted on the tank or basin with the float resting on the liquid surface. As the liquid level rises, the float rises with it and actuates the switch to close the circuit. When the liquid level drops, the float drops with it and actuates the switch to open the circuit. The switch is made of durable materials and is designed to provide long-lasting performance. Our HVAC supply store offers the best prices and fast shipping for your 9036DG2 Square D 2 Pole Close on Rise Float Switch.

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Open tank general purpose
device short name: 9036D
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For open tank or sump
device mounting: Pedestal
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher
Sea water at specific gravity of 0.85 in or higher
Hydraulic oil at specific gravity of 0.85 in or higher
Corrosive fluid at specific gravity of 0.85 in or higher
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: Variable adjustable
Float position: Any
Float rod angle: Vertical
Force down to trip: 8 ozf
Force up to trip: 9 ozf
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: Without
Enclosure material: Polypropylene or equivalent
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 0.54 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float switch
Rod and float are to be choosen in accessories
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 8.4 cm
Package 1 Width: 12.4 cm
Package 1 Length: 17.3 cm
Package 1 Weight: 499.0 g
Unit Type of Package 2: PAL
Number of Units in Package 2: 84
Package 2 Height: 101.6 cm
Package 2 Width: 101.6 cm
Package 2 Length: 121.92 cm
Package 2 Weight: 45.359 kg
Warranty: 18 months
