9016GVG1J09F | Nema Vacuum switch 9016G - adjustable scale - 2 thresholds, 480VAC, 5HP , Set 3 to 8 InHg | Schneider Electric (Square D)

Schneider Electric (Square D) | 9016GVG1J09F

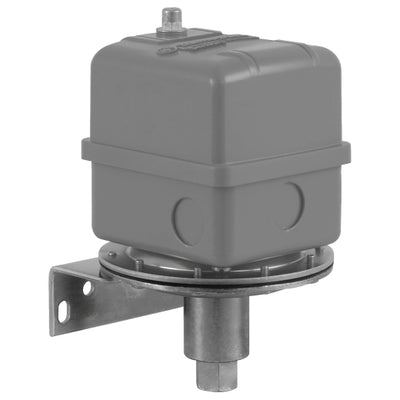

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9016GVG1J09F

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9016GVG1J09F Documents

Datasheet More Info

Overview

Details for 9016GVG1J09F

Specifications

Range of product: 9016GVG
Product or component type: Electromechanical vacuum switch
device application: Power circuit application
device short name: 9016GVG
electrical circuit type: Power circuit
Factory modification: With mounting bracket
vacuum switch type of operation: Regulation between two thresholds
Scale type: Adjustable
Vacuum sensor size: 25 inHg
Cut out range: 5…25 inHg
Cut-in range: 0…20 inHg
Approx adjustable differential at mid range: 5…10 inHg
Value of setting: 3...8 inHg
Maximum pressure: 100 psi
Maximum permissible pressure - per cycle: 689.48 kPa
Local display: Without
Fluid connection type: 0.25 inch 18 NPSF conforming to UL 508
Electrical connection: Screw-clamp terminals AWG 22...AWG 12
Cable entry number: 3 knock-outs for 1/2" NPT conduit
Terminal block type: 8 screw terminals
Pressure actuator: Diaphragm nitrile (Buna-N)
Controlled fluid: Air (-40…121 °C)
Water (-40…121 °C)
Hydraulic oil (-40…121 °C)
Gas (-40…121 °C)
Materials in contact with fluid: Nitrile (Buna-N)
3M Scotch-Grip 847 rubber and gasket adhesive
Zinc plated steel
Cover material: Polypropylene, noryl thermoplastic resin or equivalent
Operating position: Any position
Enclosure material: Stamped metal
Maximum operating rate: 100 cyc/mn
Repeat accuracy: 2.5 %
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.75 kW (5 hp) at 230 V AC, 3 phases
3.7 kW (5 hp) at 460 V AC, 1 phase
3.7 kW (5 hp) at 460 V AC, 3 phases
3.7 kW (5 hp) at 575 V AC, 1 phase
3.7 kW (5 hp) at 575 V AC, 3 phases
0.75 kW (1 hp) at 115 V DC, 3 phases
0.75 kW (1 hp) at 230 V DC
Contacts type and composition: 2 NC, DPST-DB, Form YY, snap action, silver cadmium contacts
Short-circuit protection: 20 A cartridge fuse, type gG
Mechanical durability: 300 cycles
Setting: Internal
Net weight: 1.71 kg
Height: 181.10 mm
Depth: 119.13 mm
Width: 116.33 mm
Standards: UL 508
product certifications: UL listed file E12158 CCN NKPZ
CSA file LR25490
Protective treatment: None
Ambient air temperature for operation: -12…85 °C
Ambient air temperature for storage: -12…85 °C
NEMA degree of protection: NEMA 1 conforming to UL 698
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 13.2 cm
Package 1 Width: 12.2 cm
Package 1 Length: 19.8 cm
Package 1 Weight: 1.7 kg
Warranty: 18 months
