Brand: Schneider Electric (Square D)SKU: 9013GSG2J24

List Price
~~$536.00~~

$178.72

Availability: IN STOCK

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

9013GSG2J24 | Pressure Switch: 575 VAC 5HP G + Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9013GSG2J24

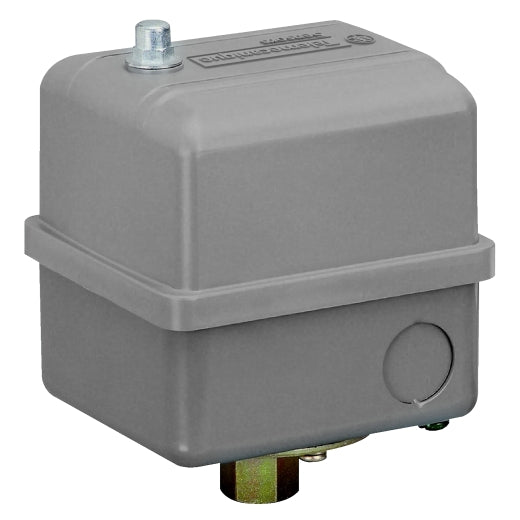

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9013GSG2J24

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9013GSG2J24 Documents

Datasheet More Info

Overview

Details for 9013GSG2J24

Advanced Pressure Control: Schneider Electric (Square D) NCO-9013GSG2J24 Pressure SwitchThe Schneider Electric (Square D) NCO-9013GSG2J24 pressure switch is a vital component for maintaining precise pressure control in industrial systems. This robust switch features an adjustable set point range of 40 psi (ON) and 60 psi (OFF), allowing for tailored pressure regulation. Its high-precision mechanism ensures accurate pressure sensing and reliable operation.Built to Endure: The NCO-9013GSG2J24 pressure switch is constructed with rugged materials, including a durable diaphragm and corrosion-resistant housing. This robust design provides exceptional durability and resilience in harsh industrial environments, ensuring longevity and dependable performance.Versatile Applications: The Schneider Electric (Square D) pressure switch finds applications in various industrial settings. It is commonly used in hydraulic and pneumatic systems, compressors, pumps, and other equipment requiring precise pressure regulation. Its versatility makes it an essential component for maintaining efficient operation and safeguarding against pressure-related failures.Shop our HVAC supply store for Unbeatable Prices:our HVAC supply store offers the Schneider Electric (Square D) NCO-9013GSG2J24 pressure switch at competitive prices, ensuring you get the best value for your investment. Our fast shipping ensures prompt delivery, minimizing downtime and maintaining smooth operations. Trust our HVAC supply store for all your industrial supply needs!

Specifications

Range of product: Square D Pumptrol
Pressure sensor name: 9013GS
Pressure sensor size: 551.58 kPa (34.47…413.69 kPa)
Value of setting: 40...60 psi
electrical circuit type: Power circuit
Product specific application: Control electrically driven water pumps and air compressors
Quantity per set: 1
Type of packing: Individual
Pressure sensor type: Electromechanical pressure switch
Controlled fluid: Air (-30…125 °C)
Fresh water (-30…125 °C)
Adjustable range on rising pressure: 137.90…551.58 kPa
Approximate adjustable differential: 103.42…206.84 kPa
Destruction pressure: 2068.43 kPa
Pressure actuator: Diaphragm
Pressure switch type of operation: Regulation between 2 thresholds
Scale type: Adjustable differential
Setting: Internal
Local display: Without
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Screw-clamp terminals, clamping capacity: 5.261 mm²
Fluid connection type: 0.25 inch NPSF internal conforming to UL 508
Short-circuit protection: 20 A cartridge fuse, type gG
Materials in contact with fluid: Zinc plated steel or equivalent flange
Nitrile (Buna-N) or equivalent rubber diaphragm
Material: Polypropylene: cover
Noryl thermoplastic resin or equivalent: cover
Operating position: Any position
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
0.75 kW (1 hp) at 115 V DC
0.75 kW (1 hp) at 230 V DC
3.75 kW (5 hp) at 230 V AC, 3 phases
3.7 kW (5 hp) at 460 V AC, 1 phase
3.7 kW (5 hp) at 460 V AC, 3 phases
3.7 kW (5 hp) at 575 V AC, 1 phase
3.7 kW (5 hp) at 575 V AC, 3 phases
Electrical durability: 100000 cycles, operating rate <10 cyc/mn
Mechanical durability: 300000 cycles
Terminal block type: 4 terminals
maximum operating rate: 10 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.02 kg
Repeat accuracy: +/- 3 %
Terminals description ISO n°1: L1-T1
L2-T2
Width: 87.38 mm
Height: 137.16 mm
Depth: 98.55 mm
Factory modification: -
Standards: NSF ANSI 372
CE
UL 508
Ambient air temperature for operation: -36…125 °C
Ambient air temperature for storage: -36…125 °C
Protective treatment: None
NEMA degree of protection: NEMA 1 conforming to UL 50
IP degree of protection: IP20 conforming to IEC 60529
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 11.176 cm
Package 1 Width: 14.478 cm
Package 1 Length: 10.16 cm
Package 1 Weight: 885.0 g
Unit Type of Package 2: PAL
Number of Units in Package 2: 156
Package 2 Height: 101.6 cm
Package 2 Width: 101.6 cm
Package 2 Length: 121.92 cm
Package 2 Weight: 138.799 kg
Warranty: 18 months
