Brand: Schneider Electric (Square D)SKU: 9013GHG6J63

List Price
~~$885.00~~

$295.14

Availability: IN STOCK

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

9013GHG6J63 | Pressure Switch: 575 VAC 5HP G + Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9013GHG6J63

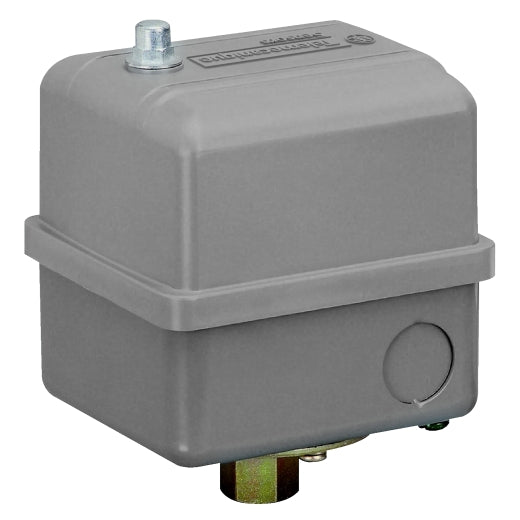

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9013GHG6J63

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9013GHG6J63 Documents

Datasheet More Info

Overview

Details for 9013GHG6J63

145#cl-175#op,PRESSURE SWITCHThe Schneider Electric (Square D) 145#cl-175#op is a high-performance pressure switch designed to control and monitor fluid pressure in industrial applications. It features a robust construction and reliable operation, ensuring accurate and consistent pressure measurement. Key Features: Rugged steel housing for exceptional durability Adjustable pressure settings for precise control Multiple switch configurations to meet varying application needs Versatile electrical connections for seamless integration Applications: Hydraulic and pneumatic systems Industrial machinery Process monitoring Chemical and refining industries Pump and compressor control Our HVAC supply store offers the Schneider Electric (Square D) 145#cl-175#op pressure switch at competitive prices with fast and reliable shipping. Trust Our HVAC supply store for your industrial supply needs, where you can find the best products for your projects.

Specifications

Range of product: Square D Pumptrol
Pressure sensor name: 9013GH
Pressure sensor size: 1723.69 kPa (220.63…1482.37 kPa)
Value of setting: 145...175 psi
electrical circuit type: Power circuit
Product specific application: Control electrically driven water pumps and air compressors
Quantity per set: 1
Type of packing: Individual
Pressure sensor type: Electromechanical pressure switch
Controlled fluid: Air (-30…125 °C)
Fresh water (-30…125 °C)
Adjustable range on rising pressure: 551.58…1723.69 kPa
Approximate adjustable differential: 165.47…310.26 kPa
Destruction pressure: 2068.43 kPa
Pressure actuator: Diaphragm
Pressure switch type of operation: Regulation between 2 thresholds
Scale type: Adjustable differential
Setting: Internal
Local display: Without
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Screw-clamp terminals, clamping capacity: 5.261 mm²
Fluid connection type: 0.375 inch NPSF internal conforming to UL 508
Short-circuit protection: 20 A cartridge fuse, type gG
Materials in contact with fluid: Zinc plated steel or equivalent flange
Nitrile (Buna-N) or equivalent rubber diaphragm
Material: Polypropylene: cover
Noryl thermoplastic resin or equivalent: cover
Operating position: Any position
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
0.75 kW (1 hp) at 115 V DC
0.75 kW (1 hp) at 230 V DC
3.75 kW (5 hp) at 230 V AC, 3 phases
3.7 kW (5 hp) at 460 V AC, 1 phase
3.7 kW (5 hp) at 460 V AC, 3 phases
3.7 kW (5 hp) at 575 V AC, 1 phase
3.7 kW (5 hp) at 575 V AC, 3 phases
Electrical durability: 100000 cycles, operating rate <10 cyc/mn
Mechanical durability: 300000 cycles
Terminal block type: 4 terminals
maximum operating rate: 10 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.02 kg
Repeat accuracy: +/- 3 %
Terminals description ISO n°1: L2-T2
L1-T1
Width: 87.38 mm
Height: 137.16 mm
Depth: 98.55 mm
Factory modification: -
Standards: NSF ANSI 372
CE
UL 508
Ambient air temperature for operation: -36…125 °C
Ambient air temperature for storage: -36…125 °C
Protective treatment: None
NEMA degree of protection: NEMA 1 conforming to UL 50
IP degree of protection: IP20 conforming to IEC 60529
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 29.032 cm
Package 1 Width: 11.43 cm
Package 1 Length: 73.742 cm
Package 1 Weight: 929.864 g
Warranty: 18 months
