Brand: Schneider Electric (Square D)SKU: 9013GHG2J63X

List Price
~~$493.00~~

$164.38

Availability: IN STOCK

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

9013GHG2J63X | Pressure Switch: 575 VAC 5HP G + Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9013GHG2J63X

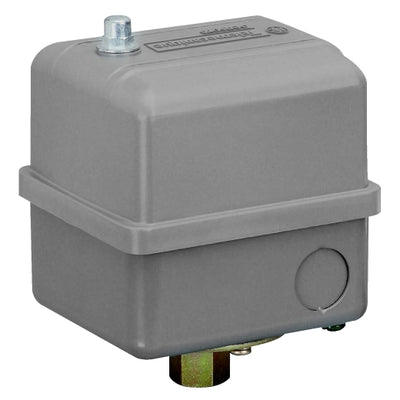

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9013GHG2J63X

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9013GHG2J63X Documents

Datasheet More Info

Overview

Details for 9013GHG2J63X

DPST 10A # Switch;145On 175Off: The 9013GHG2J63X from Schneider Electric (Square D) is a dependable double-pole, single-throw switch designed to control electrical circuits efficiently. Rated for 10 amperes, this switch offers reliable switching performance for various applications. It features a 145-degree "on" position and a 175-degree "off" position, providing precise control over the connected circuits. The switch's robust construction ensures durability and long-lasting operation in demanding industrial environments. Trust our HVAC supply store for the best prices and fast shipping on all your electrical equipment needs.

Specifications

Range of product: Square D Pumptrol
Pressure sensor name: 9013GH
Pressure sensor size: 1378.95 kPa (275.79…1172.11 kPa)
Value of setting: 145...175 psi
electrical circuit type: Power circuit
Product specific application: Control electrically driven water pumps and air compressors
Quantity per set: 1
Type of packing: Individual
Pressure sensor type: Electromechanical pressure switch
Controlled fluid: Air (-30…125 °C)
Fresh water (-30…125 °C)
Adjustable range on rising pressure: 448.16…1378.95 kPa
Approximate adjustable differential: 137.90…275.79 kPa
Destruction pressure: 2068.43 kPa
Pressure actuator: Diaphragm
Pressure switch type of operation: Regulation between 2 thresholds
Scale type: Adjustable differential
Setting: Internal
Local display: Without
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Screw-clamp terminals, clamping capacity: 5.261 mm²
Fluid connection type: 0.25 inch NPSF internal conforming to UL 508
Short-circuit protection: 20 A cartridge fuse, type gG
Materials in contact with fluid: Zinc plated steel or equivalent flange
Nitrile (Buna-N) or equivalent rubber diaphragm
Material: Polypropylene: cover
Noryl thermoplastic resin or equivalent: cover
Operating position: Any position
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
0.75 kW (1 hp) at 115 V DC
0.75 kW (1 hp) at 230 V DC
3.75 kW (5 hp) at 230 V AC, 3 phases
3.7 kW (5 hp) at 460 V AC, 1 phase
3.7 kW (5 hp) at 460 V AC, 3 phases
3.7 kW (5 hp) at 575 V AC, 1 phase
3.7 kW (5 hp) at 575 V AC, 3 phases
Electrical durability: 100000 cycles, operating rate <10 cyc/mn
Mechanical durability: 300000 cycles
Terminal block type: 4 terminals
maximum operating rate: 10 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.02 kg
Repeat accuracy: +/- 3 %
Terminals description ISO n°1: L1-T1
L2-T2
Width: 106.43 mm
Height: 137.16 mm
Depth: 98.55 mm
Factory modification: 2-way pressure release valve
Standards: CE
NSF ANSI 372
UL 508
Ambient air temperature for operation: -36…125 °C
Ambient air temperature for storage: -36…125 °C
Protective treatment: None
NEMA degree of protection: NEMA 1 conforming to UL 50
IP degree of protection: IP20 conforming to IEC 60529
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 12.4 cm
Package 1 Width: 10.9 cm
Package 1 Length: 15.5 cm
Package 1 Weight: 948.0 g
Warranty: 18 months
