9013GHG2J63 | Pressure Switch: 575 VAC 5HP G + Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9013GHG2J63

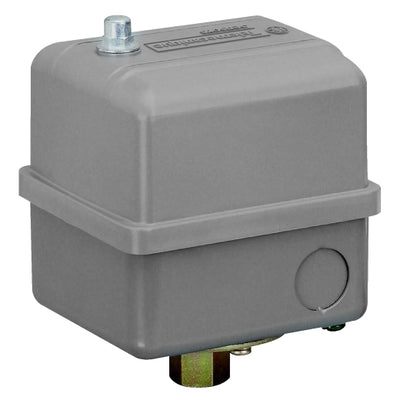

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9013GHG2J63

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9013GHG2J63 Documents

Datasheet More Info

Overview

Details for 9013GHG2J63

40/200# DPST Pushbutton; 145 On / 175 OffThe Schneider Electric (Square D) NCO-9013GHG2J63 is a durable and reliable double pole, single throw (DPST) pushbutton switch designed for a wide range of industrial applications. With its rugged construction and precise operation, this switch ensures long-lasting performance and precise control. Key Features and Benefits: Durable Construction: The NCO-9013GHG2J63 is built to withstand harsh industrial environments with its robust construction. Double Pole, Single Throw (DPST) Configuration: This pushbutton switch provides two independent circuits for controlling separate loads. 145 On, 175 Off Timing: The NCO-9013GHG2J63 features a precise timing mechanism for accurate control of electrical circuits. Long Electrical Life: The NCO-9013GHG2J63 is designed for a long electrical life, ensuring reliable operation over an extended period. Versatile Applications: This pushbutton switch is suitable for various industrial applications, including machine control, process automation, and electrical distribution systems. Trust our HVAC supply store for the best prices and fast shipping on the Schneider Electric (Square D) NCO-9013GHG2J63 pushbutton switch and other industrial products. Our commitment to customer satisfaction and our extensive product selection make us your trusted partner for all your industrial supply needs.

Specifications

Range of product: Square D Pumptrol
Pressure sensor name: 9013GH
Pressure sensor size: 1378.95 kPa (275.79…1172.11 kPa)
Value of setting: 145...175 psi
electrical circuit type: Power circuit
Product specific application: Control electrically driven water pumps and air compressors
Quantity per set: 1
Type of packing: Individual
Pressure sensor type: Electromechanical pressure switch
Controlled fluid: Air (-30…125 °C)
Fresh water (-30…125 °C)
Adjustable range on rising pressure: 448.16…1378.95 kPa
Approximate adjustable differential: 137.90…275.79 kPa
Destruction pressure: 2068.43 kPa
Pressure actuator: Diaphragm
Pressure switch type of operation: Regulation between 2 thresholds
Scale type: Adjustable differential
Setting: Internal
Local display: Without
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Screw-clamp terminals, clamping capacity: 5.261 mm²
Fluid connection type: 0.25 inch NPSF internal conforming to UL 508
Short-circuit protection: 20 A cartridge fuse, type gG
Materials in contact with fluid: Zinc plated steel or equivalent flange
Nitrile (Buna-N) or equivalent rubber diaphragm
Material: Polypropylene: cover
Noryl thermoplastic resin or equivalent: cover
Operating position: Any position
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
0.75 kW (1 hp) at 115 V DC
0.75 kW (1 hp) at 230 V DC
3.75 kW (5 hp) at 230 V AC, 3 phases
3.7 kW (5 hp) at 460 V AC, 1 phase
3.7 kW (5 hp) at 460 V AC, 3 phases
3.7 kW (5 hp) at 575 V AC, 1 phase
3.7 kW (5 hp) at 575 V AC, 3 phases
Electrical durability: 100000 cycles, operating rate <10 cyc/mn
Mechanical durability: 300000 cycles
Terminal block type: 4 terminals
maximum operating rate: 10 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.02 kg
Repeat accuracy: +/- 3 %
Terminals description ISO n°1: L1-T1
L2-T2
Width: 87.38 mm
Height: 137.16 mm
Depth: 98.55 mm
Factory modification: -
Standards: UL 508
NSF ANSI 372
CE
Ambient air temperature for operation: -36…125 °C
Ambient air temperature for storage: -36…125 °C
Protective treatment: None
NEMA degree of protection: NEMA 1 conforming to UL 50
IP degree of protection: IP20 conforming to IEC 60529
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 9.9 cm
Package 1 Width: 11.4 cm
Package 1 Length: 14.5 cm
Package 1 Weight: 893.6 g
Warranty: 18 months
