9013GHG2J26 | Square D Pumptrol, pump or compressor switch 9013GH, adjustable diff., 70 90 PSI | Schneider Electric (Square D)

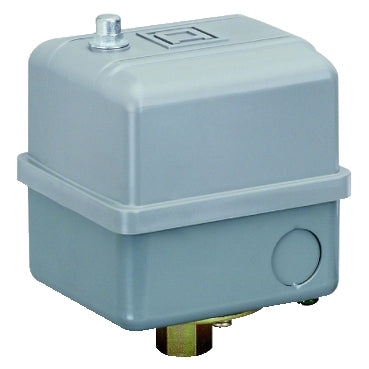

Schneider Electric (Square D) | 9013GHG2J26

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9013GHG2J26

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9013GHG2J26 Documents

More Info

Overview

Details for 9013GHG2J26

1/4" 2-Pole # Sw; 70On/90Off: 9013GHG2J26 by Schneider Electric (Square D)For precise control, use this Schneider Electric (Square D) # Sw; 70On/90Off switch. This switch is designed for 1/4" applications and features a 70-degree on time and a 90-degree off time. For added safety, this switch has a 2-pole design. As a versatile component, it can be used in a variety of applications that require precise timing and control.Shop our HVAC supply store for the best prices and fast shipping on industrial equipment and supplies!

Specifications

Range of Product: Square D Pumptrol
Pressure sensor name: 9013GH
pressure sensor size: 200 psi (1378.95 kPa) 40…170 psi (275.79…1172.11 kPa))
Value of setting: 70...90 psi
Electrical circuit type: Power circuit
Product Specific Application: Control electrically driven water pumps and air compressors
Quantity per Set: 1
Type of Packing: Individual
Pressure sensor type: Electromechanical pressure switch
controlled fluid: Air -22…257 °F (-30…125 °C)), Fresh water -22…257 °F (-30…125 °C))
Adjustable range on rising pressure: 65…200 psi (448.16…1378.95 kPa)
Approximate adjustable differential: 20…40 psi (137.90…275.79 kPa)
Destruction pressure: 300 psi (2068.43 kPa)
Pressure actuator: Diaphragm
Pressure switch type of operation: Regulation between 2 thresholds
Scale type: Adjustable differential
Setting: Internal
Local display: Without
contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
cable entry number: 3 knock-outs for 1/2" conduit UL 508
electrical connection: Screw-clamp terminals 10 AWG, Screw-clamp terminals 5.261 mm²
fluid connection type: 0.25 inch NPSF internal UL 508
short-circuit protection: 20 A cartridge fuse gG
materials in contact with fluid: Zinc plated steel or equivalent flange, Nitrile (Buna-N) or equivalent rubber diaphragm
Material: Polypropylene Cover, Noryl thermoplastic resin or equivalent Cover
Operating position: Any position
motor power kW: 1.5 kW 2 hp)115 V AC, 1 phase, 2.2 kW 3 hp)115 V AC, 3 phase, 2.2 kW 3 hp)230 V AC, 1 phase, 0.75 kW 1 hp)115 V DC, 0.75 kW 1 hp)230 V DC, 3.75 kW 5 hp)230 V AC, 3 phase, 3.7 kW 5 hp)460 V AC, 1 phase, 3.7 kW 5 hp)460 V AC, 3 phase, 3.7 kW 5 hp)575 V AC, 1 phase, 3.7 kW 5 hp)575 V AC, 3 phase
electrical durability: 100000 cycles 10 cyc/mn
Mechanical durability: 300000 cycles
Terminal block type: 4 terminals
Maximum operating rate: 10 cyc/mn
[Ui] rated insulation voltage: 575 V UL 508
Net Weight: 2.25 lb(US) (1.02 kg)
Repeat accuracy: +/- 3 %
Terminals description ISO n°1: L1-T1, L2-T2
Width: 3.44 in (87.38 mm)
Height: 5.4 in (137.16 mm)
Depth: 3.88 in (98.55 mm)
Factory modification: -
standards: UL 508, CE, NSF ANSI 372
Ambient Air Temperature for Operation: -33…257 °F (-36…125 °C)
Ambient Air Temperature for Storage: -33…257 °F (-36…125 °C)
Protective treatment: None
NEMA degree of protection: NEMA 1 UL 50
IP degree of protection: IP20 conforming to IEC 60529
Product Certifications: UL listed file E12158, CSA file LR25490
Category: 21536-9013 G COMMERCIAL PRESSURE SWITCH
Discount Schedule: CP7G
GTIN: 785901052708
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.29 in (10.9 cm)
Package 1 Width: 3.90 in (9.9 cm)
Package 1 Length: 5.91 in (15.0 cm)
Package 1 Weight: 31.52 oz (893.6 g)
Warranty: 18 months
