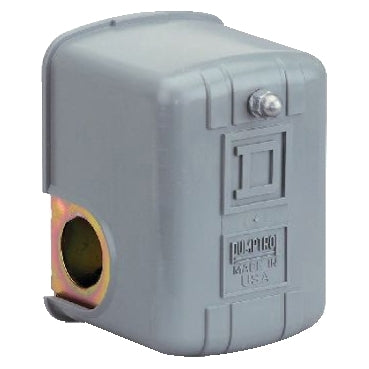

5-21# Adj Diff Press Switch (SKU: 9013FSW49J15)
This Schneider Electric (Square D) differential pressure switch is designed to monitor and control air or gas pressure differences in industrial applications.
Features:
* Adjustable differential pressure range: 5 to 21 inches of water column
* SPDT switch contacts
* 1/4" NPT female pressure connections
* UL listed for industrial use
* Compact design for easy installation
Benefits:
* Accurately monitors pressure differences in various industrial systems
* Provides reliable switching operation for automated control
* Easy to install and adjust for specific application requirements
* Meets industry safety standards for reliable performance
Applications:
* HVAC systems
* Air handling units
* Fluid systems
* Industrial equipment monitoring
* Safety and ventilation systems
Order your 5-21# Adj Diff Press Switch from our HVAC supply store today and experience the best prices and fast shipping on your industrial equipment needs!
Specifications
- Range of Product
- Square D Pumptrol
- Pressure sensor name
- 9013FS
- pressure sensor size
- 30 psi (206.84 kPa) 3…10 psi (20.68…68.95 kPa))
- Value of setting
- 5...21 psi
- Electrical circuit type
- Power circuit
- Product Specific Application
- Control electrically driven water pumps
- Quantity per Set
- 1
- Type of Packing
- Individual
- Pressure sensor type
- Electromechanical pressure switch
- controlled fluid
- Fresh water -22…257 °F (-30…125 °C))
- Adjustable range on rising pressure
- 9…30 psi (62.05…206.84 kPa)
- Approximate adjustable differential
- 6…20 psi (41.37…137.90 kPa)
- Destruction pressure
- 220 psi (1516.85 kPa)
- Pressure actuator
- Diaphragm
- Pressure switch type of operation
- Regulation between 2 thresholds
- Scale type
- Adjustable differential
- Setting
- Internal
- Local display
- Without
- contacts type and composition
- 2 NC, snap action, DPST-DB, Form YY
- cable entry number
- 2 0.88 in (22.35 mm) cable entries with 0.84 in across flats UL 508
- electrical connection
- Screw-clamp terminals 10 AWG, Screw-clamp terminals 5.261 mm²
- fluid connection type
- 0.25 inch NPT external UL 508
- short-circuit protection
- 20 A cartridge fuse gG
- materials in contact with fluid
- Zinc plated steel or equivalent flange, Nitrile (Buna-N) or equivalent rubber diaphragm
- Material
- Polypropylene Cover, Noryl thermoplastic resin or equivalent Cover
- Operating position
- Vertical position
- motor power kW
- 1.5 kW 2 hp)230 V AC, 1 phase, 1.1 kW 1.5 hp)115 V AC, 1 phase, 1.5 kW 2 hp)115 V AC, 3 phase, 2.2 kW 3 hp)230 V AC, 3 phase, 0.75 kW 1 hp)460 V AC, 3 phase, 0.75 kW 1 hp)575 V AC, 3 phase
- electrical durability
- 100000 cycles 10 cyc/mn
- Mechanical durability
- 300000 cycles
- Terminal block type
- 4 terminals
- Maximum operating rate
- 10 cyc/mn
- [Ui] rated insulation voltage
- 575 V UL 508
- Net Weight
- 1 lb(US) (0.45 kg)
- Repeat accuracy
- +/- 3 %
- Terminals description ISO n°1
- L1-T1, L2-T2
- Width
- 2.78 in (70.61 mm)
- Height
- 2.8 in (71.12 mm)
- Depth
- 3.76 in (95.50 mm)
- Factory modification
- -
- standards
- CE, NSF ANSI 61 Annex G, UL 508
- Ambient Air Temperature for Operation
- -33…257 °F (-36…125 °C)
- Ambient Air Temperature for Storage
- -33…257 °F (-36…125 °C)
- Protective treatment
- None
- NEMA degree of protection
- NEMA 3R UL 50
- IP degree of protection
- IP20 conforming to IEC 60529
- Product Certifications
- UL listed file E12158, CSA file LR25490
- Category
- 21534-9013 FSG,FYG (INDIVIDUAL - CP7I)
- Discount Schedule
- CP7I
- GTIN
- 785901695455
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.16 in (25.806 cm)
- Package 1 Width
- 4.00 in (10.16 cm)
- Package 1 Length
- 25.81 in (65.548 cm)
- Package 1 Weight
- 16.00 oz (453.592 g)
- Warranty
- 18 months
