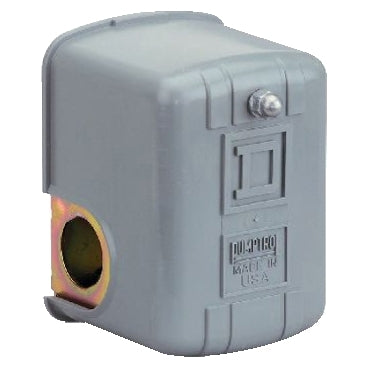

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9013FSG2J18
Documents and manuals
Schneider Electric (Square D) 9013FSG2J18 Documents
Overview
Details for 9013FSG2J18
20-50# 2Pole Pressure Switch (9013FSG2J18) by Schneider Electric (Square D)
The Schneider Electric 9013FSG2J18 pressure switch is a vital component for monitoring and controlling fluid pressure in industrial applications. This two-pole switch features a pressure range of 20 to 50#, making it suitable for various liquid or gas pressure systems.
Constructed from durable materials, the 9013FSG2J18 ensures reliability and longevity in demanding environments. Its rugged design withstands harsh conditions, providing accurate measurements over an extended service life.
The switch operates with a simple and reliable mechanism. When the pressure exceeds the pre-setpoint, the switch activates, triggering an electrical signal to initiate appropriate actions. This allows for precise pressure control, enhancing system efficiency and preventing potential hazards.
Key Features:
* Pressure range: 20-50#
* Two-pole configuration
* Durable construction for demanding environments
* Reliable and accurate pressure monitoring
* Electrical signal activation for automation and control
Applications:
* Industrial fluid systems
* Gas pressure monitoring
* Hydraulic and pneumatic systems
* Process control and automation
Our HVAC supply store is your trusted source for industrial electrical components. We offer competitive prices and fast shipping to ensure you get the products you need, when you need them. Shop now and experience the difference! This product is part of the Nema Pressure Switches range, an offer of water pump switches. This water pump switch has 2 normally closed, snap action, DPST-DB (double pole single throw, double break) form YY contacts and a pressure setting value of 20psi to 50psi. The pump switch with a pressure sensor size of 65psi (5psi to 45psi), an adjustable range on rising pressure of 20psi to 65psi and approximate adjustable differential of 15psi to 30psi. It is furnished with screw clamp terminals for electrical connection and 0.25inch NPSF internal for fluid connection. This switch has a diaphragm actuator which can be operated from any position and adjustable differential scale for internal settings. The enclosure is made of polypropylene. It is available in size of 2.78inch (W) x 3.76inch (D) x 2.8inch (H) and weighs 1lb. It is suitable for all types of pumps such as jets, submersible, reciprocating etc. Suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses and injection moulders. It is an IP20 and NEMA 1 rated product. This product is certified by CE, CSA and UL. Meets UL 508 and NSF ANSI 61 Annex G standards. Every pressure switch has two operating points, one on rising pressure and one of falling pressure. The operating point on rising pressure is referred to as the TRIP POINT or cut out for pumps and compressors. Power pressure switch rated for the direct control of motors in pump applications. Rugged, robust construction provides a long life and years of uninterrupted, worry-free service. Electromechanical switch to monitor and control pressure conditions for industrial and end-users applications.
Specifications
- Range of Product
- Square D Pumptrol
- Pressure sensor name
- 9013FS
- pressure sensor size
- 65 psi (448.16 kPa) 5…45 psi (34.47…310.26 kPa))
- Value of setting
- 20...50 psi
- Electrical circuit type
- Power circuit
- Product Specific Application
- Control electrically driven water pumps
- Quantity per Set
- 1
- Type of Packing
- Individual
- Pressure sensor type
- Electromechanical pressure switch
- controlled fluid
- Fresh water -22…257 °F (-30…125 °C))
- Adjustable range on rising pressure
- 20…65 psi (137.90…448.16 kPa)
- Approximate adjustable differential
- 15…30 psi (103.42…206.84 kPa)
- Destruction pressure
- 220 psi (1516.85 kPa)
- Pressure actuator
- Diaphragm
- Pressure switch type of operation
- Regulation between 2 thresholds
- Scale type
- Adjustable differential
- Setting
- Internal
- Local display
- Without
- contacts type and composition
- 2 NC, snap action, DPST-DB, Form YY
- cable entry number
- 2 0.88 in (22.35 mm) cable entries with 0.84 in across flats UL 508
- electrical connection
- Screw-clamp terminals 10 AWG, Screw-clamp terminals 5.261 mm²
- fluid connection type
- 0.25 inch NPSF internal UL 508
- short-circuit protection
- 20 A cartridge fuse gG
- materials in contact with fluid
- Zinc plated steel or equivalent flange, Nitrile (Buna-N) or equivalent rubber diaphragm
- Material
- Polypropylene Cover, Noryl thermoplastic resin or equivalent Cover
- Operating position
- Any position
- motor power kW
- 1.5 kW 2 hp)230 V AC, 1 phase, 1.1 kW 1.5 hp)115 V AC, 1 phase, 1.5 kW 2 hp)115 V AC, 3 phase, 2.2 kW 3 hp)230 V AC, 3 phase, 0.75 kW 1 hp)460 V AC, 3 phase, 0.75 kW 1 hp)575 V AC, 3 phase
- electrical durability
- 100000 cycles 10 cyc/mn
- Mechanical durability
- 300000 cycles
- Terminal block type
- 4 terminals
- Maximum operating rate
- 10 cyc/mn
- [Ui] rated insulation voltage
- 575 V UL 508
- Net Weight
- 1 lb(US) (0.45 kg)
- Repeat accuracy
- +/- 3 %
- Terminals description ISO n°1
- L1-T1, L2-T2
- Width
- 2.78 in (70.61 mm)
- Height
- 2.8 in (71.12 mm)
- Depth
- 3.76 in (95.50 mm)
- Factory modification
- -
- standards
- NSF ANSI 61 Annex G, UL 508, CE
- Ambient Air Temperature for Operation
- -33…257 °F (-36…125 °C)
- Ambient Air Temperature for Storage
- -33…257 °F (-36…125 °C)
- Protective treatment
- None
- NEMA degree of protection
- NEMA 1 UL 50
- IP degree of protection
- IP20 conforming to IEC 60529
- Product Certifications
- CSA file LR25490, UL listed file E12158
- Category
- 21534-9013 FSG,FYG (INDIVIDUAL - CP7I)
- Discount Schedule
- CP7I
- GTIN
- 785901159018
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.80 in (7.112 cm)
- Package 1 Width
- 3.80 in (9.652 cm)
- Package 1 Length
- 4.00 in (10.16 cm)
- Package 1 Weight
- 13.44 oz (381.018 g)
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 50
- Package 2 Height
- 8.60 in (21.844 cm)
- Package 2 Width
- 15.20 in (38.608 cm)
- Package 2 Length
- 20.80 in (52.832 cm)
- Package 2 Weight
- 44.98 lb(US) (20.403 kg)
- Warranty
- 18 months
