9012GNG4 | Pressure Switch: 480 VAC 10AMP G + Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9012GNG4

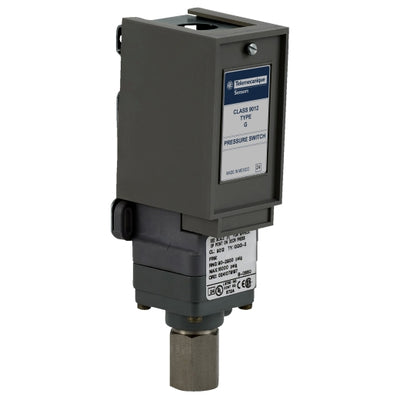

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9012GNG4

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9012GNG4 Documents

Datasheet More Info

Overview

Details for 9012GNG4

NCO 9012GNG4 Schneider Electric Square D - 1.5-75# 2.5-6.5#DIF 1/4" PrSwt The NCO 9012GNG4 is a 1.5-75# 2.5-6.5#DIF 1/4" Pressure Switch from Schneider Electric Square D. This pressure switch is designed to monitor and control pressure in a variety of industrial applications. It features a brass body, Buna-N diaphragm, and 1/4" NPT connections. The NCO 9012GNG4 has a wide adjustable pressure range of 1.5-75 psi and 2.5-6.5 psi differential. It also has a high-pressure limit of 150 psi and a low-pressure limit of 0 psi. The NCO 9012GNG4 is a versatile pressure switch that can be used in a variety of applications. It is ideal for use in hydraulic and pneumatic systems, as well as in water and gas applications. This pressure switch is also suitable for use in hazardous locations. Our HVAC supply store is your one-stop shop for all of your industrial supply needs. We offer a wide selection of pressure switches, as well as a variety of other industrial products. We are committed to providing our customers with the best possible prices and the highest level of customer service. Shop now!

Specifications

Range of product: 9012G
Pressure sensor type: Electromechanical pressure switch
Pressure sensor name: 9012G
Pressure sensor size: 517.11 kPa
Maximum pressure: 240 psi
Contacts type and composition: NC-NO, SPDT, Form C, snap action, silver nickel contacts
Controlled fluid: Hydraulic oil (-40…121 °C)
Non-corrosive liquids
Air
Non-corrosive gas
Fluid connection type: 0.25 inch 18 NPTF conforming to UL 508
Pressure switch type of operation: Regulation between 2 thresholds
Scale type: Adjustable differential
Local display: Without
Range on decreasing pressure: 10.34…517.11 kPa
Approx adjustable differential at mid range: 15.17…75.84 kPa +/- 2.5 % full scale
cable entry: 0.5 inch NPT conduit entrance
Terminal block type: 4 screw terminals
Electrical connection: Screw-clamp terminals, AWG 22...AWG 12
electrical circuit type: Control circuit
Local signalling: Without:
[In] rated current: 3 A 240 V AC A600 conforming to NEMA rating designation
6 A 120 V AC A600 conforming to NEMA rating designation
0.27 A 250 V DC R300 conforming to NEMA rating designation
0.22 A 125 V DC R300 conforming to NEMA rating designation
Setting: Internal
Enclosure material: Thermoplastic
Pressure actuator: Diaphragm nitrile (Buna-N)
Height: 176.28 mm
Depth: 69.85 mm
Width: 56.13 mm
Operating position: Any position
Materials in contact with fluid: Zinc plated steel
Nitrile (Buna-N)
Short-circuit protection: 10 A cartridge overload and short-circuit protection, type gL
Maximum operating rate: 120 cyc/mn
Mechanical durability: 5000000 cycles
Repeat accuracy: 4 %
Net weight: 0.91 kg
Vibration resistance: 2 gn (f= 40…150 Hz) conforming to IEC 68-2-6
Shock resistance: 50 gn conforming to IEC 58-2-27
Standards: UL 508
CE
CSA C22.2 No 14
product certifications: UL listed file E12158 CCN NKPZ
CSA LR25490 class 3211 03
CE
NEMA degree of protection: NEMA 1 conforming to UL 50
Ambient air temperature for operation: -23…85 °C
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 9.652 cm
Package 1 Width: 10.160 cm
Package 1 Length: 24.638 cm
Package 1 Weight: 902.600 g
Unit Type of Package 2: S03
Number of Units in Package 2: 8
Package 2 Height: 30.000 cm
Package 2 Width: 30.000 cm
Package 2 Length: 40.000 cm
Package 2 Weight: 7.641 kg
Unit Type of Package 3: P12
Number of Units in Package 3: 64
Package 3 Height: 45.000 cm
Package 3 Width: 80.000 cm
Package 3 Length: 120.000 cm
Package 3 Weight: 73.126 kg
Warranty: 18 months
