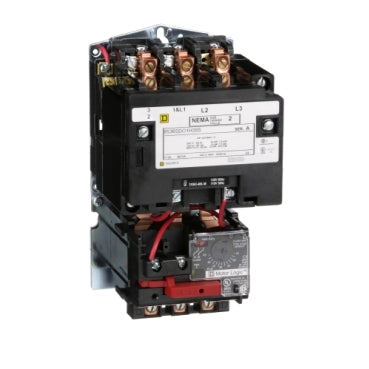

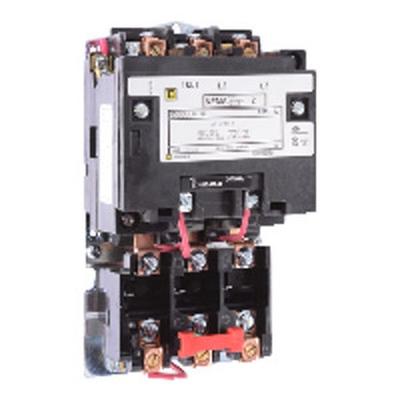

8536SDO1V02H30S | 120V Size 2 Motor Starter | Schneider Electric (Square D)

120V Size 2 Motor Starter (8536SDO1V02H30S) from Schneider Electric (Square D) is designed for industrial applications. The motor starter is rated for 120V and has a Size 2 frame. It features thermal overload protection to prevent damage to the motor in the event of an overload. The starter also has a manual reset button to allow for quick and easy resetting after an overload.The motor starter is made from high-quality materials and is built to last. It is compact and easy to install, making it a great choice for a variety of applications. Our HVAC supply store offers the best prices and fast shipping on all of our products, so you can be sure you're getting the best deal. Shop now! Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing starter has a 45 ampere rating. This NEMA Size 2 motor starter has 3 phase ratings of 10 HP at 200 VAC, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 15A to 45A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 7.81 inches tall, 4.31 inches wide and 4.94 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
