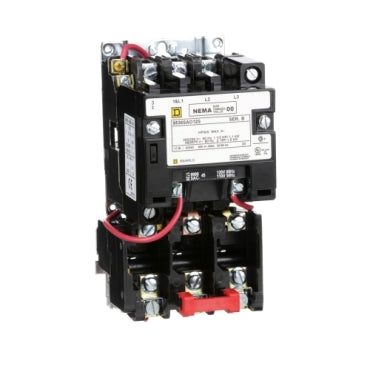

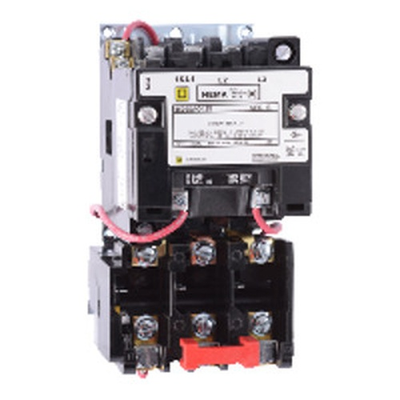

8536SAO12V02S | Type S Full Voltage Starter, Size 00, Open, 110V 50Hz, 120V 60Hz, 9A, 3-Poles, Non-Reversing | Schneider Electric (Square D)

120V Non-Reversing Size 00 Starter: NCO-8536SAO12V02S by Schneider Electric (Square D)The NCO-8536SAO12V02S 120V Non-Reversing Size 00 Starter by Schneider Electric (Square D) is designed for use with non-reversing motor applications. This starter features: *Manual Reset *Single Phase *Voltage: 120V *100kA interrupting rating *Built-in overload protection *Compact design This starter is ideal for use in a variety of applications, including: *Conveyors *Fans *Pumps *Industrial machinery Our HVAC supply store offers the best prices and fast shipping on NCO-8536SAO12V02S starters. Shop now! Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 00 non-reversing starter has an 9 ampere rating. This NEMA Size 00 motor starter has 3 phase ratings of 1.5 HP at 220 and 230 VAC and 2 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
