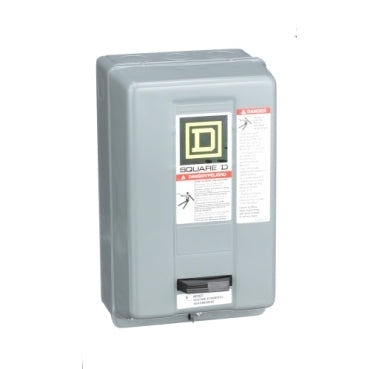

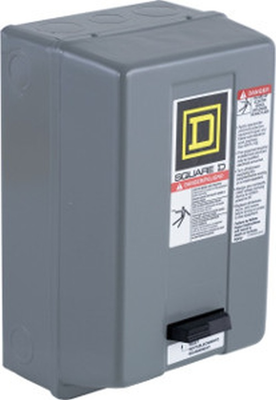

8536SAG12V02S | Type S Full Voltage Starter, Size 00, NEMA 1 General Purpose, 110V 50Hz, 120V 60Hz, 9A, 3-Poles, Non-Reversing | Schneider Electric (Square D)

NCO-8536SAG12V02S Schneider Electric (Square D) 120V 9A 3 Pole NEMA 1 Starter The Schneider Electric (Square D) NCO-8536SAG12V02S is a 120V, 9A, 3-pole NEMA 1 starter designed for use in a variety of industrial applications. It features a compact design and is easy to install. The starter is also equipped with a variety of safety features, including overload protection and short-circuit protection. The NCO-8536SAG12V02S is a high-quality starter that is built to last. It is an excellent choice for use in demanding industrial applications. Shop now at our HVAC supply store for the best prices and fast shipping on the NCO-8536SAG12V02S and all your other industrial supply needs! Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 00 non-reversing starter has an 9 ampere rating. This NEMA Size 00 motor starter has 3 phase ratings of 1.5 HP at 220 and 230 VAC and 2 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
