8501XO80V02 | 8501 Industrial Control Relay, 110V AC 50 Hz/120V AC 60 Hz, Coil with 8 NO Contacts | Schneider Electric (Square D)

Schneider Electric (Square D) | 8501XO80V02

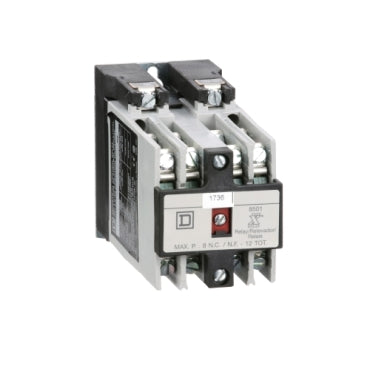

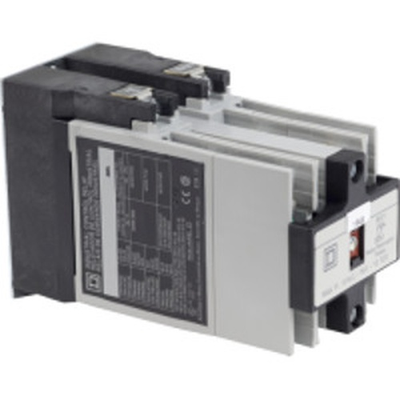

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8501XO80V02

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 8501XO80V02 Documents

More Info

Overview

Details for 8501XO80V02

110/120VAC Control Relay (8501XO80V02) by Schneider Electric (Square D)The Schneider Electric (Square D) 8501XO80V02 is a 110/120VAC control relay designed to provide reliable and efficient control in industrial applications. With a robust construction and advanced features, this relay ensures accurate and precise performance. Key Features: - 110/120VAC Operation: Designed to operate on 110/120VAC power supply, ensuring compatibility with a wide range of electrical systems. - Control Relay: Provides switching and control capabilities for various electrical devices, including motors, solenoids, and lighting systems. - Compact Design: Offers a compact footprint, allowing for easy installation in limited spaces. - Reliable Performance: Engineered to deliver consistent and reliable operation in demanding industrial environments. - Durable Construction: Built to withstand harsh conditions, ensuring longevity and durability. - Easy Installation: Designed for quick and effortless installation, reducing downtime and minimizing labor costs. Applications: The Schneider Electric (Square D) 8501XO80V02 control relay finds applications in a variety of industrial settings, including: - Motor control - Lighting systems - Conveying systems - Material handling equipment - HVAC systems our HVAC supply store: Your Reliable Source for Industrial Products! our HVAC supply store offers the best prices and fastest shipping for all your industrial product needs. Trust us for superior quality and exceptional customer service. Visit our shop now! 8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has eight 8501XC1 contact cartridges. This relay has eight normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The eight plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified.

Specifications

Range: 8501X
Relay Type: Control
Product: Relay
Current Rating: 10 A AC;5 A DC
Coil Voltage: 110 V AC 50 Hz;120 V AC 60 Hz
control circuit voltage limits: Operational 0.85...1.1 Uc AC 50/60 Hz
rated breaking capacity: 6 A 120 V AC inductive control circuit UL 508;3 A 240 V AC inductive control circuit UL 508;1.5 A 480 V AC inductive control circuit UL 508;1.2 A 600 V AC inductive control circuit UL 508;10 A <= 600 V AC resistive control circuit UL 508;1.1 A 125 V DC inductive control circuit UL 508;0.55 A 250 V DC inductive control circuit UL 508;0.2 A 301...600 V DC inductive control circuit UL 508;4 A 125 V DC resistive control circuit UL 508;0.8 A 250 V DC resistive control circuit UL 508
[Icm] rated short-circuit making capacity: 60 A 120 V AC inductive control circuit UL 508;30 A 240 V AC inductive control circuit UL 508;15 A 480 V AC inductive control circuit UL 508;12 A 600 V AC inductive control circuit UL 508;10 A <= 600 V AC resistive control circuit UL 508;1.1 A 125 V DC inductive control circuit UL 508;0.55 A 250 V DC inductive control circuit UL 508;0.2 A 301...600 V DC inductive control circuit UL 508;4 A 125 V DC inductive control circuit UL 508;0.8 A 250 V DC resistive control circuit UL 508
inrush power in VA: 148 VA 60 Hz;143 VA 50 Hz
hold-in power consumption in VA: 23 VA 60 Hz;25 VA 50 Hz
operating time: 15 ms - pick-up;16 ms - drop-out
Contact Configuration: 8 NO 8 standard contact cartridges
Electrical Connection: Screw clamp terminals
AWG gauge: AWG 18...AWG 12 copper
tightening torque: Control circuit 9.03…12.04 lbf.in (1.02…1.36 N.m) screw terminals
Mounting Type: Panel
Height: 3.5 in (88.90 mm)
Width: 2.23 in (56.64 mm)
Depth: 5.16 in (131.06 mm)
Operating Temperature: -40…160 °F (-40…71 °C)
Certifications: CSA LR60905 class 3211 03;UL listed file E78403 CCN NKCR
Category: 21158-8501 XO (AC)
Discount Schedule: CP2
GTIN: 785901536819
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.30 in (8.382 cm)
Package 1 Width: 4.50 in (11.43 cm)
Package 1 Length: 6.40 in (16.256 cm)
Package 1 Weight: 2.43 lb(US) (1.102 kg)
Warranty: 18 months
