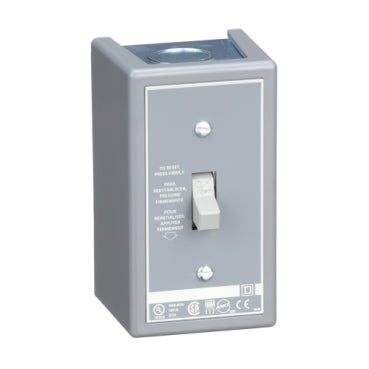

2510FG2 | Fractional Horsepower Manual Starter, 16A, NEMA 1, 2-Pole, Toggle Operated, No Indicator, 277VAC | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 2510FG2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 2510FG2 Documents

More Info

Overview

Details for 2510FG2

Stndrd 277V Man.Strtr 2510FG2 by Schneider Electric (Square D) The Stndrd 277V Man.Strtr 2510FG2 from Schneider Electric (Square D) is a high-performance starter designed for industrial applications. This starter offers reliable motor control and protection with its advanced features and durable construction. Key Features: Rated for 277V operation Manual starter for precise control Manufactured by Schneider Electric (Square D), a trusted brand in electrical equipment Applications: The Stndrd 277V Man.Strtr 2510FG2 is ideal for controlling motors in industrial settings, including: Conveyor systems Material handling equipment Processing machinery Benefits: The Stndrd 277V Man.Strtr 2510FG2 provides several benefits for industrial users: Reliable motor control and protection Easy installation and maintenance Durable construction for longevity Shop our HVAC supply store for the best prices and fast shipping on the Stndrd 277V Man.Strtr 2510FG2 and all your industrial electrical needs! Square D 2510F fractional motor manual starter provide overload protection and manual On Off control for small single phase AC motors. Open style starter fits industry standard single-gang switch boxes for direct mounting in a wall or machine using any standard cover plate with a standard single cutout. Overload heater element is ordered separately to match motor data. Pilot light option is available. A variety of enclosures are available. Units are UL Listed and CSA Certified for global applications. This 2 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP at 115 VAC, 2 HP at 230 VAC, 1 HP at 277 VAC and 0.75 HP at 115 and 230 VDC ratings. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.25 inches tall, 2.44 inches wide and 2.88 inches deep. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.

Specifications

Product: Single Unit Manual Starter
Type: F
Overload Relay Type: Melting alloy
Current Rating: 16 A
cable entry: 0.5" and 0.75" knock-outs (top and bottom)
Horsepower Rating: 1 hp 115 V AC;1 hp 277 V AC;0.75 hp 115 V DC;0.75 hp 230 V DC;2 hp 230 V AC
Voltage Rating: 277 V AC;230 V DC
Number of Poles: 2P
Control Unit: Toggle switch
Number of Phases: 1 phase
Pilot Light: No indicator
Reset: Manual
motor starter type: Non reversing
Electrical Connection: Screw clamp terminals
Wire Gauge: AWG 14...AWG 12 copper
Height: 4.25 in (107.95 mm)
Width: 2.44 in (61.98 mm)
Depth: 2.75 in (69.85 mm)
Net Weight: 0.79 lb(US) (0.36 kg)
Product Certifications: UL listed file E42243 CCN NLRV;CSA LR25490 class 3211 05
NEMA Enclosure Rating: NEMA 1 Plastic standard size
Category: 21101-2510;2511;2512 F
Discount Schedule: CP1
GTIN: 785901553953
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.60 in (6.604 cm)
Package 1 Width: 3.00 in (7.62 cm)
Package 1 Length: 4.70 in (11.938 cm)
Package 1 Weight: 12.64 oz (358.338 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 14
Package 2 Height: 8.90 in (22.606 cm)
Package 2 Width: 8.30 in (21.082 cm)
Package 2 Length: 14.50 in (36.83 cm)
Package 2 Weight: 11.68 lb(US) (5.298 kg)
Unit Type of Package 3: PAL
Number of Units in Package 3: 624
Package 3 Height: 40.00 in (101.6 cm)
Package 3 Width: 40.00 in (101.6 cm)
Package 3 Length: 48.00 in (121.92 cm)
Package 3 Weight: 493.00 lb(US) (223.621 kg)
Warranty: 18 months
