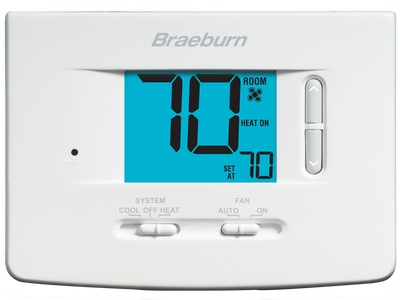

1020 | Economy Non-Programmable Thermostat 1H / 1C | BRAEBURN

Braeburn MPK-1020 24v Digital Single-Stage Thermostat The Braeburn MPK-1020 thermostat is a non-programmable, battery-powered or hard-wired device designed for heating and cooling systems. It features a digital display and adjustable temperature limits from 45°F to 90°F. Replaces obsolete 1000 and 1010 models. Key Features: * 24v operation * Single-stage heating and cooling * Temperature limits: 45°F to 90°F * Battery-powered or hard-wired operation * Replaces Braeburn 1000 and 1010 thermostats Benefits: * Precise temperature control * Easy to operate digital display * Long-lasting battery or hard-wired operation * Compatible with a wide range of heating and cooling systems Applications: * Residential and commercial buildings * Heating and cooling systems with 1H-1C configurations Order the Braeburn MPK-1020 thermostat from our HVAC supply store today for competitive pricing and fast delivery. Our commitment to providing quality products and exceptional customer service makes us your trusted partner for all your industrial and maintenance needs.

Features

• Large 3 Sq. In. Display with Bright Blue Backlight
• Adjustable Temperature Limits
• Hardwire or Battery Powered
• Permanent Memory Retains Settings
• Separate O & B Terminals
• Compressor Short Cycle Protection
• Adjustable Temperature Differential
• Low Battery Indication
• ESD Guard Electronic Circuitry
• Front Access Reset Button
• F˚ / C˚ Switch
• Gas / Electric Fan Switch
• Mount to Horizontal Box
• Trilingual Packaging and Instruction Card with FREE Contractor Branding

Architectural Specifications

The digital non-programmable thermostat shall be a Braeburn®, model number 1020, 3.70” high x 5.16” wide x 1.38” deep, powered independently with either 24 Volt AC or with two “AA” Alkaline batteries (3.0 Volt DC). The thermostat shall be compatible with single stage gas, oil or electric heating or cooling systems including single stage heat pumps and 250mv – 750mv millivolt heating systems. The thermostat shall have a bright blue backlight display, adjustable temperature limits and separate sub-base for trouble free installation. Temperature control range shall be between 45° and 90° F (7° and 32°C), accuracy of +/- 1° F (+/- .5° C), humidity range between 5% and 95% relative humidity. The thermostat shall include non-volatile memory to retain all user and temperature settings. Thermostat shall have low battery indication and a front reset button will return user settings to default values when pressed. The thermostat can be mounted to a horizontal junction box.
