Z2100Q-K+CQXUP-3 | ZoneTight™ (QCV) | 1" | 2-way | Cv 8.2 | Configurable Valve Actuator | Non fail-safe | AC 100-240 V | On/Off | Floating point | Belimo

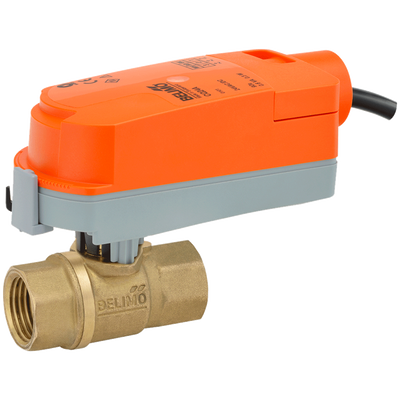

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to Z2100Q-K+CQXUP-3
Documents and manuals
Belimo Z2100Q-K+CQXUP-3 Documents
Overview
Details for Z2100Q-K+CQXUP-3
ZoneTight™ (QCV), 1", 2-way, Cv 8.2 |Configurable Valve Actuator, Non fail-safe, AC 100...240 V, On/Off, Floating point
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 75B0
- Cv
- 8.2
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Chrome plated brass
- Valve Size
- 1" [25]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- Floating/3-point
- Degree of Protection
- IP40 NEMA 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 0.7 W
- Power Consumption (Running)
- 1 W
- Running Time (Motor)
- 75 s / 90B0
- Voltage AC/DC
- AC 100...240 V
