Z2100Q-K+CQKB24-SR-LR | ZoneTight™ (QCV), 1", 2-way, Cv 8.2 |Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, Normally Open, Fail-safe position Closed, modulating | Belimo

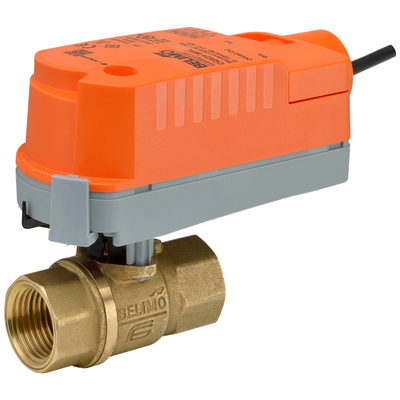

Belimo | Z2100Q-K+CQKB24-SR-LR
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to Z2100Q-K+CQKB24-SR-LR

Documents and manuals

Belimo Z2100Q-K+CQKB24-SR-LR Documents

Overview

Details for Z2100Q-K+CQKB24-SR-LR

ZoneTight™ (QCV), 1", 2-way, Cv 8.2 |Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, Normally Open, Fail-safe position Closed, modulating

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
8.2
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Chrome plated brass
Valve Size
1" [25]
Actuator specifications
Actuator Type
Electrical fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP40 NEMA 2
Electrical Connection
cable
Power Consumption (Holding)
0.5 W
Power Consumption (Running)
2.5 W
Running Time (Fail-safe)
<60 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC/DC 24 V
