Z2050QPF-J+CQKB24-S-LL | ZoneTight™ (QCV), Press Fit, 1/2
$148.50
Brand: BelimoSKU: Z2050QPF-J+CQKB24-S-LL
List Price
$330.00
$148.50
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

Z2050QPF-J+CQKB24-S-LL | ZoneTight™ (QCV), Press Fit, 1/2", 2-way, Cv 5.9 |Valve Actuator, Electronic fail-safe, AC/DC 24 V, On/Off, 1 x SPST, Normally Open, Fail-safe position Open | Belimo

Belimo | Z2050QPF-J+CQKB24-S-LL

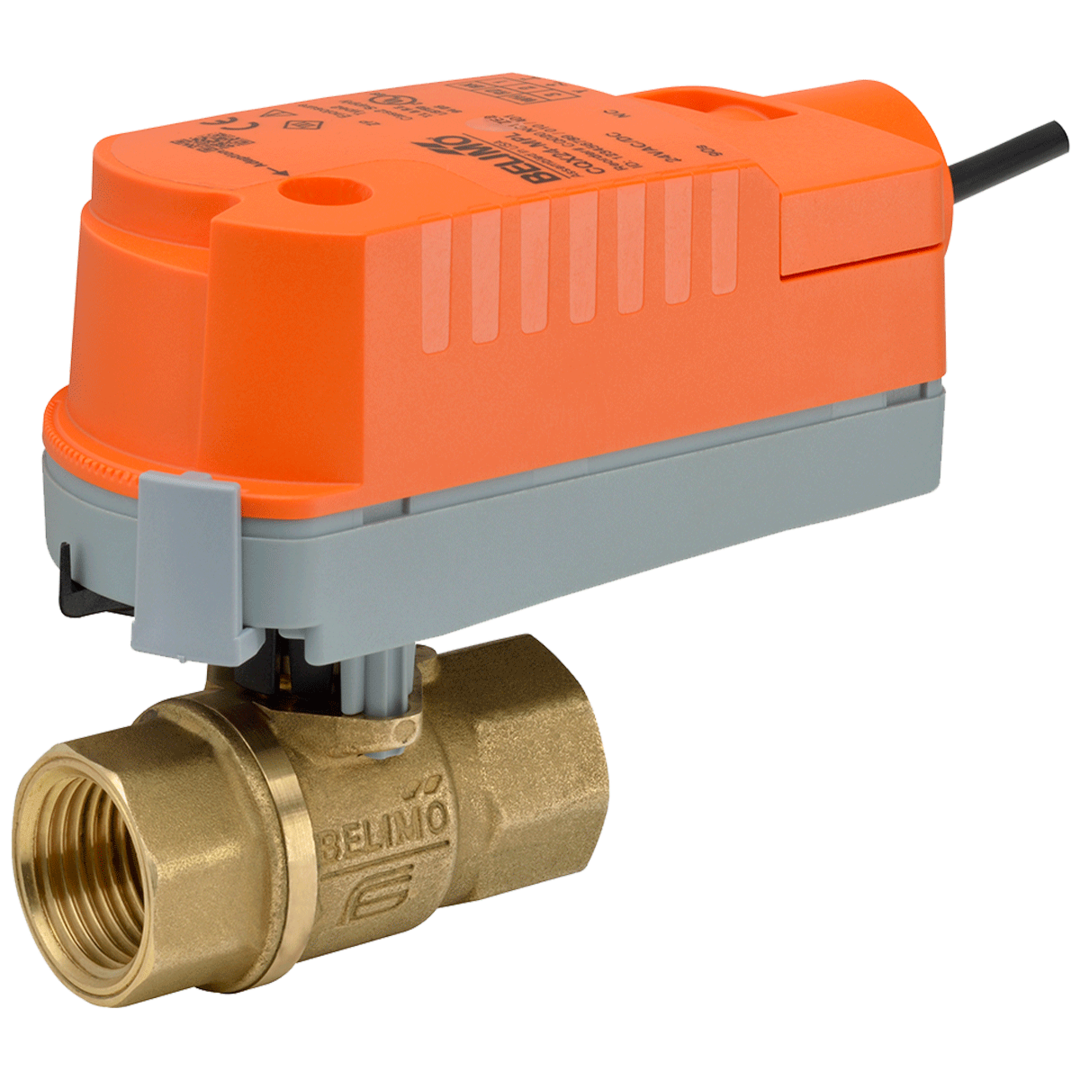

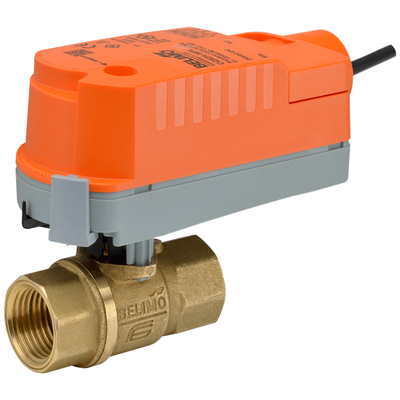

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to Z2050QPF-J+CQKB24-S-LL

Documents and manuals

Belimo Z2050QPF-J+CQKB24-S-LL Documents

Overview

Details for Z2050QPF-J+CQKB24-S-LL

ZoneTight™ (QCV), Press Fit, 1/2", 2-way, Cv 5.9 |Valve Actuator, Electronic fail-safe, AC/DC 24 V, On/Off, 1 x SPST, Normally Open, Fail-safe position Open

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
5.9
End Fitting
Press fit
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Chrome plated brass
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Electrical fail-safe
Auxiliary Switches
1 x SPST
Control Type
On/Off
Degree of Protection
IP40 NEMA 2
Electrical Connection
cable
Power Consumption (Holding)
0.5 W
Power Consumption (Running)
2.5 W
Running Time (Fail-safe)
<60 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC/DC 24 V
