Z2050QPF-F+CQBUP-3 | ZoneTight™ (QCV), Press Fit, 1/2", 2-way, Cv 1.4 |Valve Actuator, Non fail-safe, AC 100...240 V, On/Off, Floating point | Belimo

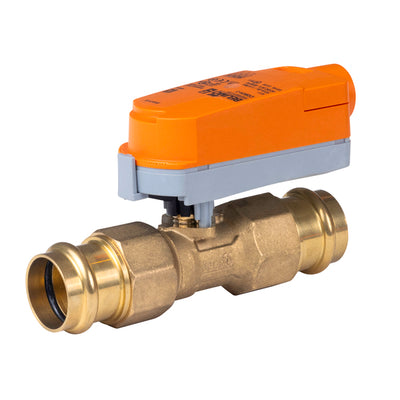

ZoneTight™ (QCV), Press Fit, 1/2", 2-way, Cv 1.4 |Valve Actuator, Non fail-safe, AC 100...240 V, On/Off, Floating point
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to Z2050QPF-F+CQBUP-3
Documents and manuals
Belimo Z2050QPF-F+CQBUP-3 Documents
Overview
Details for Z2050QPF-F+CQBUP-3
ZoneTight™ (QCV), Press Fit, 1/2", 2-way, Cv 1.4 |Valve Actuator, Non fail-safe, AC 100...240 V, On/Off, Floating point
ZoneTight™, 2-way, Press fitActuator specifications
Specifications
- Item Number
- Z2050QPF-F+CQBUP-3
- Brand
- Belimo
- Type
- ZoneTight™
- Actuator Type
- Non fail-safe
- Control Type
- Floating/3-point
- Degree of Protection
- IP40, NEMA 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 0.7 W
- Power Consumption (Running)
- 1 W
- Running Time (Motor)
- 75 s / 90°
- Voltage AC/DC
- AC 100...240 V
- Angle of Rotation
- 90
- Controllable Flow Range
- 75°
- Cv
- 1.4
- End Fitting
- Press fit
- Fluid
- Chilled or hot water, up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Chrome plated brass
- Valve Size
- 0.5" [15]
