WGVL+AVKX24-MFT | WGVL w/ Electronic FS | 450 lbf | 24V | MFT | Belimo
$810.00
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: WGVL+AVKX24-MFT
List Price
$1,800.00
$810.00
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
The product is not cancelable or returnable unless found defective
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

WGVL+AVKX24-MFT | WGVL w/ Electronic FS | 450 lbf | 24V | MFT | Belimo

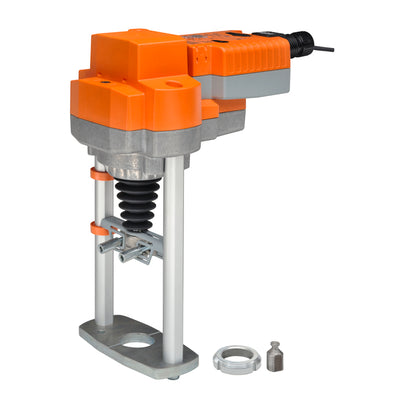

Belimo | WGVL+AVKX24-MFT
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to WGVL+AVKX24-MFT

Documents and manuals

Belimo WGVL+AVKX24-MFT Documents

Overview

Details for WGVL+AVKX24-MFT

WGVL w/ Electronic FS | 450 lbf | 24V | MFT

Application

The WGVL retrofit kit is designed to easily attach AVK, EV and RV series actuators to select Warren globe valves. Its casted base and lower lock nut allow the WGVL to be mounted on 2-1/2” to 6” two-way or three-way valves in both normally open and normally closed configurations.

Operation

The WGVL linkage with actuator will provide 50 mm of linear travel to accommodate a wide range of valve sizes.

Default/Configuration

The default set up for a WGVL linkage will be factory installed along with an AVK or EV, RV series actuator. Included in the kit will be all the necessary hardware to facilitate mounting to the Warren valve.


Specifications

Actuator Type
Electrical fail-safe
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Fluid
Chilled or hot water and steam
Force
2000 N [450 lbf]
Power Consumption (Holding)
2 W
Power Consumption (Running)
5 W
Protection category
IP54
Running Time (Fail-safe)
<35 s
Running Time (Motor)
90 s /
Running Time range (Motor)
90...150 s
Stroke
2" [50 mm]
Voltage AC/DC
AC/DC 24 V
