UGVL+SVKB24-SR | UGVL w/ Electronic FS | 337 lbf | 24V | 2-10V | Belimo
$727.20
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: UGVL+SVKB24-SR
List Price
$1,616.00
$727.20
Availability: IN STOCK
Contact us for price breaks on large quantities!
This item ships FREE*
The product is not cancelable or returnable unless found defective
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

UGVL+SVKB24-SR | UGVL w/ Electronic FS | 337 lbf | 24V | 2-10V | Belimo

Belimo | UGVL+SVKB24-SR

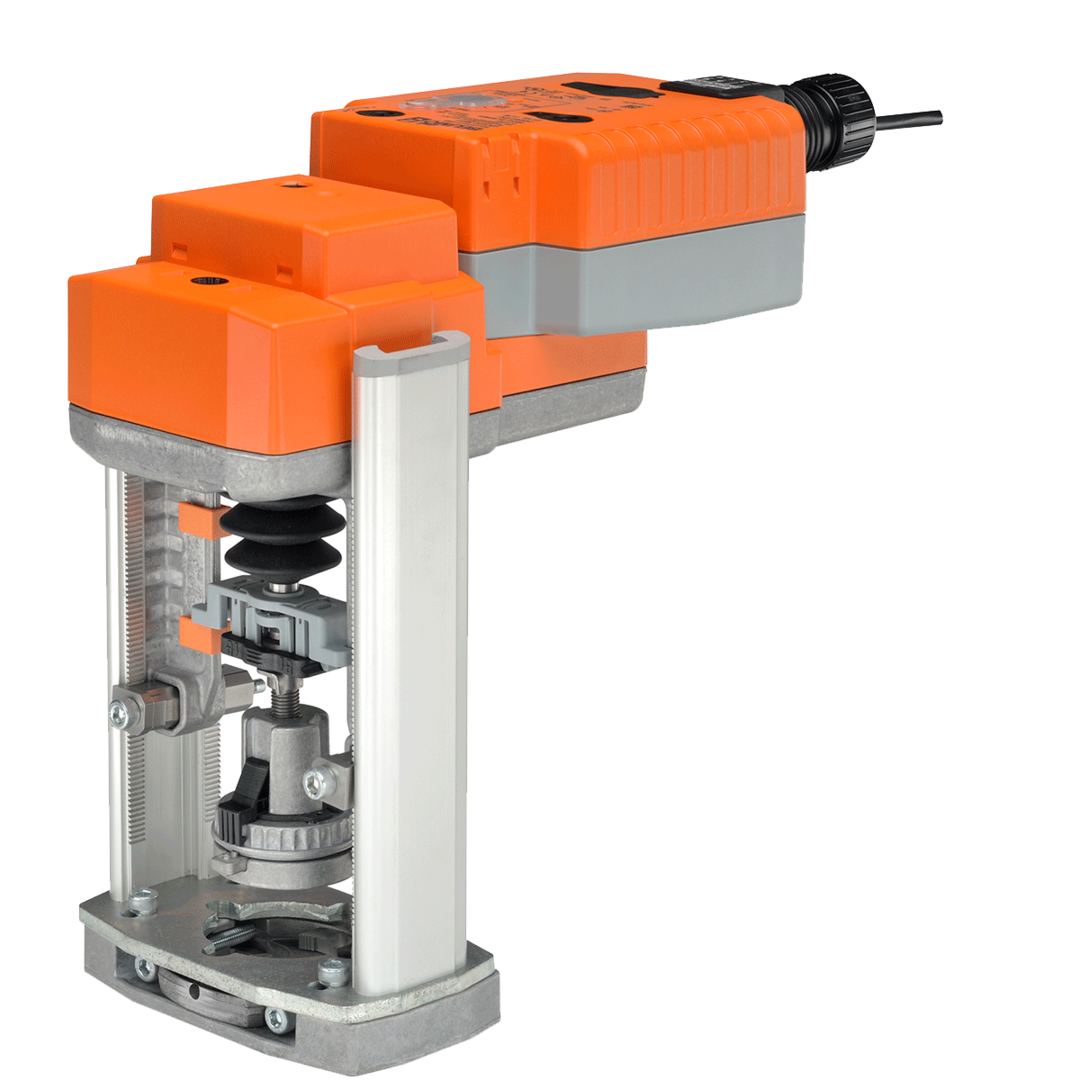

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to UGVL+SVKB24-SR

Documents and manuals

Belimo UGVL+SVKB24-SR Documents

Overview

Details for UGVL+SVKB24-SR

UGVL w/ Electronic FS | 337 lbf | 24V | 2-10V

UGVL w/ Electronic FS | 337 lbf | 24V | 2-10V

Application

The UGVL retrofit kit is designed to easily attach LV and SV series actuators to select globe valves. Its unique adjustable design allows the UGVL to be mounted on ½” to 2” two-way or three-way valves in both normally open and normally closed configurations.

Operation

The UGVL linkage with actuator will provide 20 mm of linear travel to accommodate a wide range of valves.

Default/Configuration

The default set up for a UGVL linkage will be factory installed along with a LV or SV series actuator. Included in the kit will be all the necessary hardware to facilitate mounting to the valve


Specifications

Actuator Type
Electrical fail-safe
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Fluid
Chilled or hot water and steam
Force
1500 N [340 lbf]
Power Consumption (Holding)
2 W
Power Consumption (Running)
3 W
Protection category
IP54
Running Time (Fail-safe)
<35 s
Running Time (Motor)
90 s /
Stroke
0.6" [15 mm] LV 3/4" [20 mm] SV
Voltage AC/DC
AC/DC 24 V
