UGLK1000 | Retrofit Kit | Siebe .5
$374.40
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: UGLK1000
List Price
$832.00
$374.40
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
The product is not cancelable or returnable unless found defective
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

UGLK1000 | Retrofit Kit | Siebe .5"-1.25" VB7/VB9.. | Belimo

Belimo | UGLK1000
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to UGLK1000

Documents and manuals

Belimo UGLK1000 Documents

Overview

Details for UGLK1000

Retrofit Kit | Siebe .5"-1.25" VB7/VB9..

Retrofit Kit | Siebe .5"-1.25" VB7/VB9..

Application

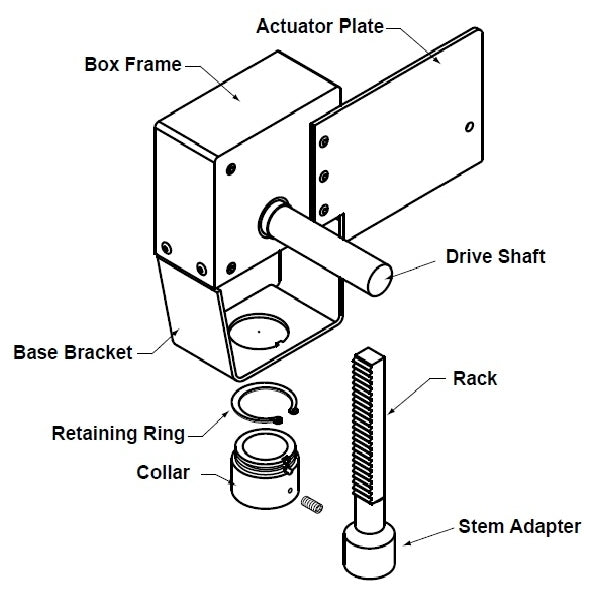

The UGLK retrofit kit is designed to easily attach to the valve bonnet on select competitor valves utilizing Belimo actuators. The kit is used to restore service to the valve without removal of the valve, saving down time. The unique collar design allows the UGLK to be mounted on various two-way or three-way valves. In addition, the rack and pinion construction allow the linkage to be used with normally open and normally closed valves.

Operation

The UGLK linkage provides downward travel with 95° rotation on the actuator. The linkage travel is based on the size of gear inside. The size of the gear is stamped on the frame. This allows the valve to extend fully open or closed based on signal. When directional needs vary, the actuator can be flipped or directional switch turned to a new rotation. The compact design allows for installation in tight spaces.

Default/Configuration

The actuator is sold separately from the linkage. This allows users to select any actuator with the desired control signal. Since the linkage utilizes standard airside actuators, they can be purchased at any time and mounted in the field. Due to the free-spring design of the linkage, clearance is not an issue. The linkage can be oriented at any angle on the valve bonnet.


Specifications

Stroke
1/2" (12 teeth)
