SGVL+SVX24-MFT | SGVL w/ Non-Spg | 337 lbf | 24V | MFT | Belimo

Belimo | SGVL+SVX24-MFT

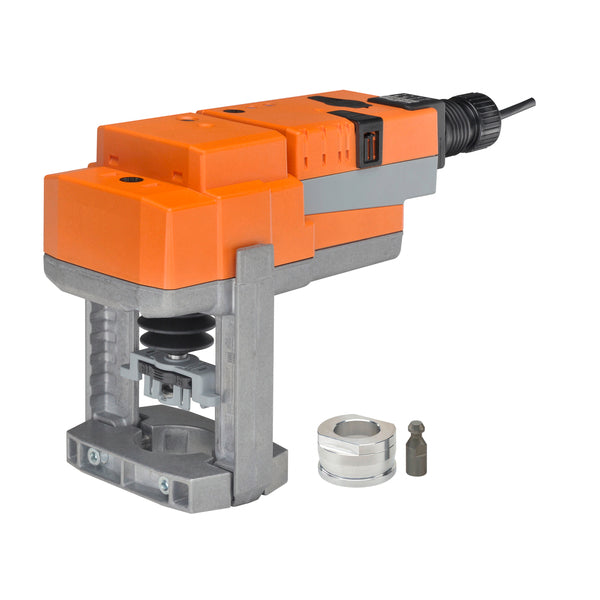

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SGVL+SVX24-MFT

Documents and manuals

Belimo SGVL+SVX24-MFT Documents

Overview

Details for SGVL+SVX24-MFT

SGVL w/ Non-Spg | 337 lbf | 24V | MFT

SGVL w/ Non-Spg | 337 lbf | 24V | MFT

Application

The SGVL retrofit kit is designed to easily attach LV and SV series actuators to select Schneider globe valves. Its casted base and free spinning collar allow the SGVL to be mounted on ½” to 2” two-way or three-way valves in both normally open and normally closed configurations.

Operation

The SGVL linkage with actuator will provide 20 mm of linear travel to accommodate a wide range of valve sizes.

Default/Configuration

The default set up for a SGVL linkage will be factory installed along with a LV or SV series actuator. Included in the kit will be all the necessary hardware to facilitate mounting to the Schneider valve.


Specifications

Actuator Type
Non fail-safe
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Fluid
Chilled or hot water and steam
Force
1500 N [340 lbf]
Power Consumption (Holding)
2 W
Power Consumption (Running)
1.5 W
Protection category
IP54
Running Time (Motor)
90 s /
Running Time range (Motor)
35...150 s
Stroke
0.95" [24 mm]
Voltage AC/DC
AC/DC 24 V
