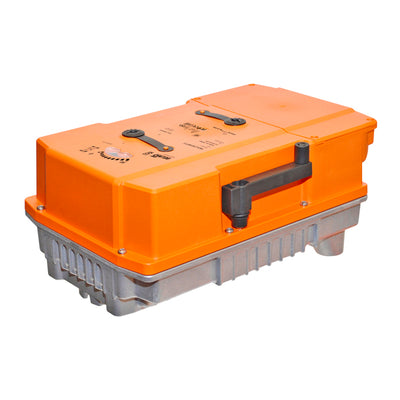

PRBUP-MFT-T | Valve Actuator | Non-Spring | 24-240V | MFT | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PRBUP-MFT-T
Overview
Details for PRBUP-MFT-T
Valve Actuator | Non-Spring | 24-240V | MFT
Product Features
200 psi (2” to 12”) and 150 psi (14” to 24”) 0% leakage, Long stem design allows for 2” insulation, Valve face-to-face dimensions comply with API 609 & MSS-SP-67, Completely assembled and tested, Ready for installation.
Application
Designed for use in ANSI flanged piping systems.Designed for use in ANSI flanged piping systems to meet the needs of bi-directional high flow HVAC hydronic applications requiring 0% leakage. Used for isolation (shut-off) service or throttling service within a range of 0-60 degrees rotation. Typical applications include chiller and boiler isolation, primary bypass flow control , cooling tower isolation, large air handler coil control, and process control heat exchanger applications.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 150
- Controllable Flow Range
- Quarter turn mechanically limited
- Cv
- 451
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 4" [100]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- MFT/Programmable
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- 7 mm hex crank supplied
- Power Consumption (Holding)
- 6 W
- Power Consumption (Running)
- 20 W
- Running Time (Motor)
- 35 s / 90B0
- Torque
- 160 Nm
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
