GRCX120-3 N4 | Valve Actuator | Non fail-safe | AC 100-240 V | On/Off | Floating point | NEMA 4X | Belimo
$935.55
Brand: BelimoSKU: GRCX120-3 N4
List Price
$2,079.00
$935.55
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

GRCX120-3 N4 | Valve Actuator | Non fail-safe | AC 100-240 V | On/Off | Floating point | NEMA 4X | Belimo

Belimo | GRCX120-3 N4

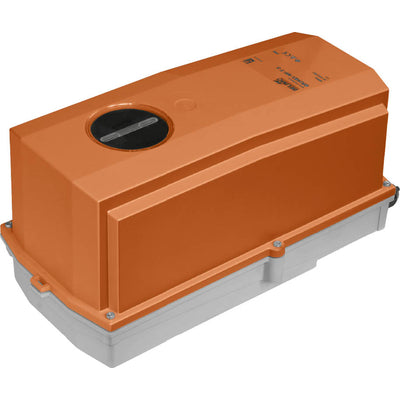

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GRCX120-3 N4

Documents and manuals

Belimo GRCX120-3 N4 Documents

Overview

Details for GRCX120-3 N4

Valve Actuator | Non fail-safe | AC 100-240 V | On/Off | Floating point | NEMA 4X

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
90B0 rotation
Cv
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
Floating/3-point
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
cable
Manual Override
Under cover
Power Consumption (Holding)
2 W
Power Consumption (Running)
6 W
Running Time (Motor)
35 s / 90B0
Voltage AC/DC
AC 100...240 V
