G332B-M+NFB24-SR-X1 | Globe Valve | 1.25" | 3 Way | 20 Cv | w/ Spring Return | 24V | Modulating | Belimo

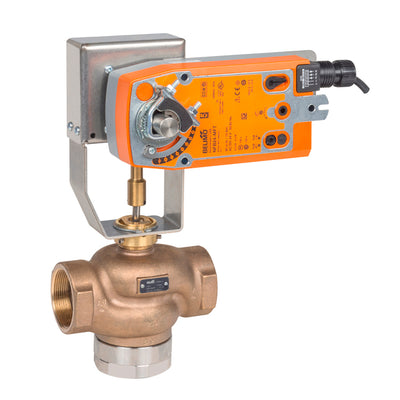

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G332B-M+NFB24-SR-X1
Documents and manuals
Belimo G332B-M+NFB24-SR-X1 Documents
Overview
Details for G332B-M+NFB24-SR-X1
Globe Valve | 1.25" | 3 Way | 20 Cv | w/ Spring Return | 24V | Modulating
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include unit ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in hydronic system with constant or variable flow. These 3-way valves can be used for both mixing and diverting depending on the piping configuration.Specifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 250
- Controllable Flow Range
- Stem up - open B b AB
- Cv
- 20
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Bronze
- Valve Size
- 1.25" [32]
- Actuator specifications
- Actuator Type
- Spring return
- Control Type
- DC 2...10 V
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 2.5 W
- Power Consumption (Running)
- 3.5 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 95 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
