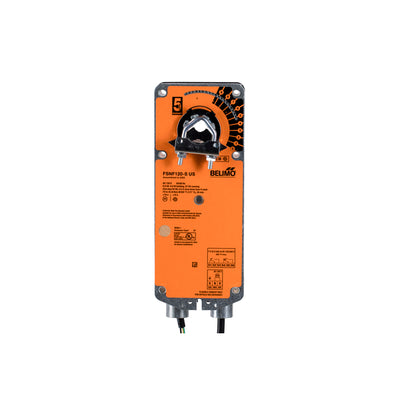

Belimo | FSNF120-S US
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to FSNF120-S US

Documents and manuals

Belimo FSNF120-S US Documents

Overview

Details for FSNF120-S US

Fire & Smoke Actuator | 70 in-lb | Spg Rtn | 120V | On/Off | 2SPDT | 1m Cable

Application

The type FSNF spring-return actuator is intended for the operation of smoke and combination fire and smoke dampers in ventilation and air-conditioning systems. The actuator will meet requirements of UL555 and UL555S when tested as an assembly with the damper and will meet requirements of UBC for 15 second opening and closing at 350°F. Square footage of damper operated will depend on make and model and the temperature required.

Operation

Mounting of the actuator to the damper axle shaft or jackshaft (3/8” to 1.05”) is via a cold-weld clamp. Teeth in the clamp and V-bolt dig into the metal of both solid and hollow shafts maintaining a perfect connection. The specially designed clamp will not crush hollow shafts. The bottom end of the actuator is held by an anti-rotation strap or by a stud provided by the damper manufacturer. The actuator is mounted in its fail safe position with the damper blade(s) closed. Upon applying power, the actuator drives the damper to the open position. The internal spring is tensioned at the same time. If the power supply is interrupted, the spring moves the damper back to its fail-safe position.


Specifications

Actuator Type
Spring return
Angle of Rotation
95
Auxiliary Switches
2 x SPDT
Control Type
On/Off
Degree of Protection
IP40 NEMA 1
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Electrical Connection
cable
Running Time (Fail-safe)
15 s
Running Time (Motor)
15 s / 90B0
Safety Function
YES
Torque
70 in-lb [8 Nm] from 32...350B0F [0...177B0C]
Voltage AC/DC
AC 120 V
