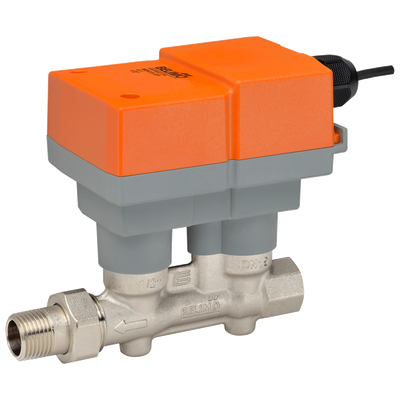

FM050 | Flow Meter NPT 1/2" | Forged Brass | Nickel Plated | 6.6 GPM | Power Supply 24V | Output signal 0 - 10VDC | Belimo (OBSOLETE)
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to FM050
Documents and manuals
Belimo FM050 Documents
Overview
Details for FM050
DISCONTINUED AND REPLACED WITH 22PF-5UC
Flow Meter NPT 1/2" | Forged Brass | Nickel Plated | 6.6 GPM | Power Supply 24V | Output signal 0 - 10VDC
This device has been designed for use in stationary heating, ventilation and air-conditioning systems and must not be used outside the specified field of application, especially in aircraft or in any other airborne means of transport. Outdoor applications: Only possible where (sea) water, snow, ice, sunlight or aggressive gases cannot interfere directly with the device and it can be guaranteed that the ambient conditions remain at all times within the thresholds according to the data sheet. Only authorized specialists may carry out installation. All applicable legal or institutional installation regulations must be complied during installation. The device contains electrical and electronic components and must not be disposed of as household refuse. All locally valid regulations and requirements must be observed.Specifications
- Application
- Pipe
- Cv
- 5
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Fluid
- Chilled or hot water up to 60% glycol
- Measured Values
- Flow
- Output Signal
- 0...10 V
- Product Type
- Sensor
- Sensor Type
- Flow
- Voltage AC/DC
- AC/DC 24 V
