F780-150SHP+GMX24-MFT-X1 | Butterfly Valve | 3" | 3 Way | 228Cv | w/ Non-Spring | 24V | MFT | Belimo
Documents and manuals
Belimo F780-150SHP+GMX24-MFT-X1 Documents
Overview
Details for F780-150SHP+GMX24-MFT-X1

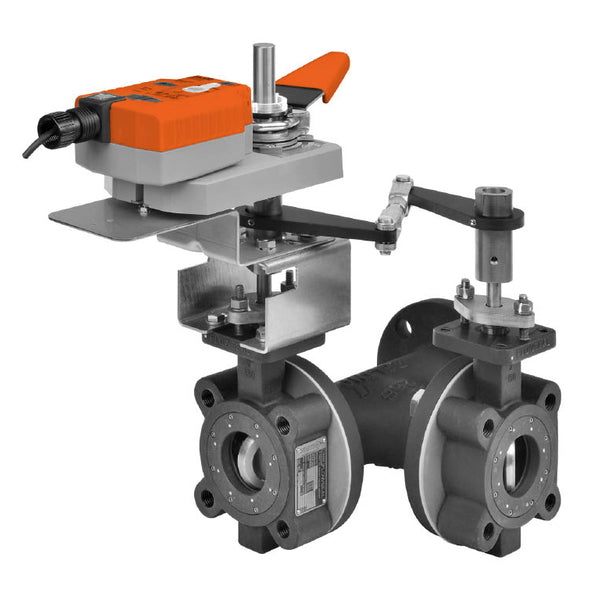

Butterfly Valve | 3" | 3 Way | 228Cv | w/ Non-Spring | 24V | MFT
Bttrfly Valve | 3" | 3 Way | 228 Cv | w/ Non-Spg | 24V | MFT
• Bubble tight shut-off to ANSI Class 150 Standards
• Long stem design allows for 2” insulation minimum
• Valve Face-to-face dimensions comply with API 609 & MSS-SP-68
• Designed to be installed between ASME/ANSI B16.5 Flanges
• Completely assembled and tested, ready for installation
• Tees comply with ASME/ANSI B16.1 Class 125 Flanges
Application
These valves are designed to meet the needs of HVAC and Commercial applications requiring positive shut-off for liquids at higher pressures and temperatures. Typical applications include chiller isolation, cooling tower isolation, change-over systems, large air handler coil control, bypass and process control applications. The large Cv values provide for an economical control valve solution for larger fl ow applications
Specifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 150
- Controllable Flow Range
- Quarter turn mechanically limited
- Cv
- 228
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Valve Size
- 3" [80]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.5 W
- Power Consumption (Running)
- 4.5 W
- Running Time (Motor)
- 150 s / 90B0
- Torque
- 40 Nm
- Voltage AC/DC
- AC/DC 24 V
