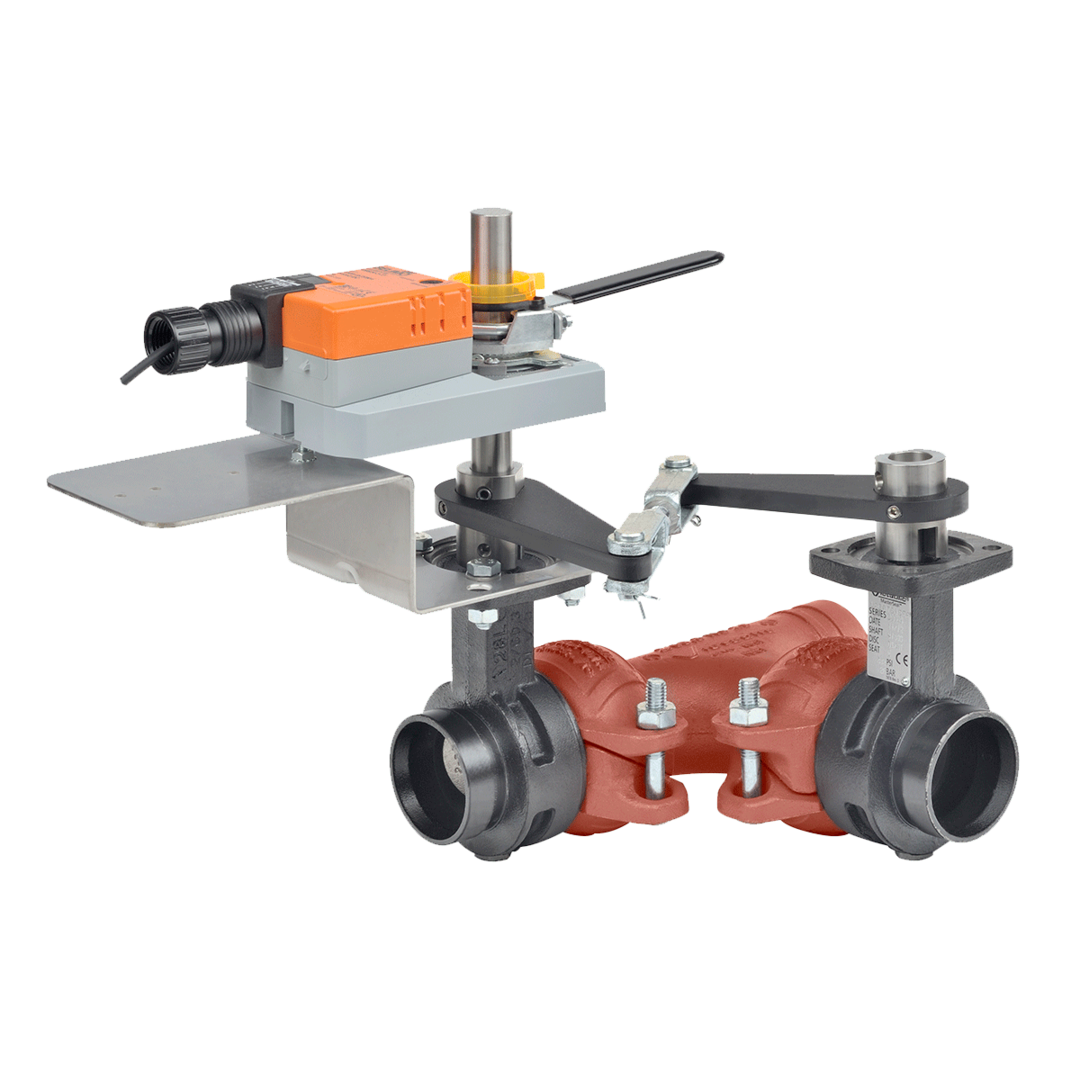

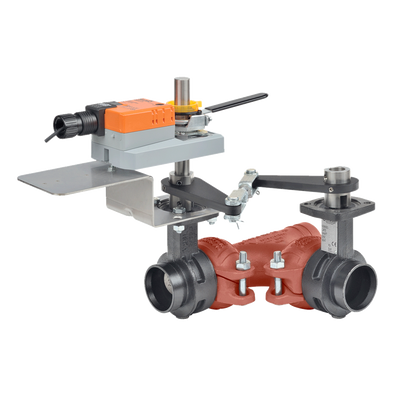

F765VIC+GMX24-MFT-X1 | Butterfly Valve | 2.5" | 3 Way | 260Cv | w/ Non-Spring | 24V | MFT | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F765VIC+GMX24-MFT-X1
Documents and manuals
Belimo F765VIC+GMX24-MFT-X1 Documents
Overview
Details for F765VIC+GMX24-MFT-X1
Butterfly Valve | 2.5" | 3 Way | 260Cv | w/ Non-Spring | 24V | MFT
Bttrfly Valve | 2.5" | 3 Way | 260 Cv | w/ Non-Spg | 24V | MFT
Application
These valves are designed to meet the needs of HVAC and commercial applications requiring bubble tight shut-off for liquids. Typical applications include chiller isolation, cooling tower isolation, change-over systems, large air handler coil control, bypass and process control applications. The large Cv values provide for an economical control valve solution for larger fl ow applications.
Jobsite Note
Valves should be stored in a weather protected area prior to construction.
Specifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- Grooved AWWA
- Controllable Flow Range
- 90B0 rotation
- Cv
- 260
- End Connection
- Grooved types
- End Fitting
- Grooved
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Valve Size
- 2.5" [65]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.5 W
- Power Consumption (Running)
- 4.5 W
- Running Time (Motor)
- 150 s / 90B0
- Torque
- 40 Nm
- Voltage AC/DC
- AC/DC 24 V
