F680HD+GMB24-MFT-X1 | Butterfly Valve (BFV) | 3" | 2-way | ANSI Class Consistent with 125 | Cv 302 Valve Actuator | Non fail-safe | AC/DC 24 V | 2-10 V | MFT/programmable | Belimo

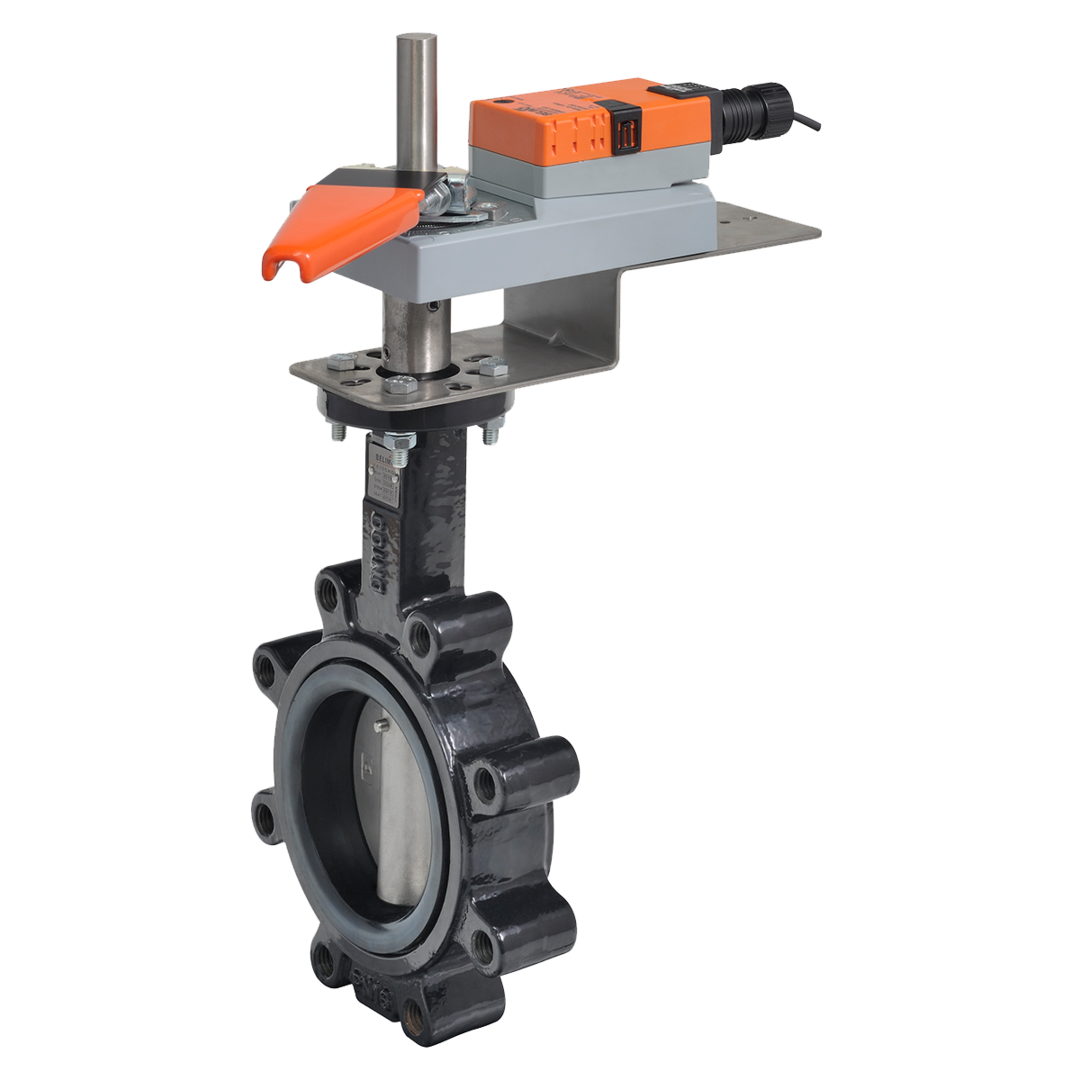

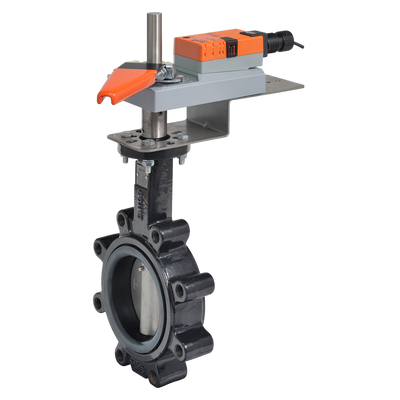

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F680HD+GMB24-MFT-X1
Documents and manuals
Belimo F680HD+GMB24-MFT-X1 Documents
Overview
Details for F680HD+GMB24-MFT-X1
Butterfly Valve (BFV) | 3" | 2-way | ANSI Class Consistent with 125 | Cv 302 Valve Actuator | Non fail-safe | AC/DC 24 V | 2-10 V | MFT/programmable
Specifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 302
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 3" [80]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.5 W
- Power Consumption (Running)
- 4 W
- Running Time (Motor)
- 150 s / 90B0
- Torque
- 40 Nm
- Voltage AC/DC
- AC/DC 24 V
