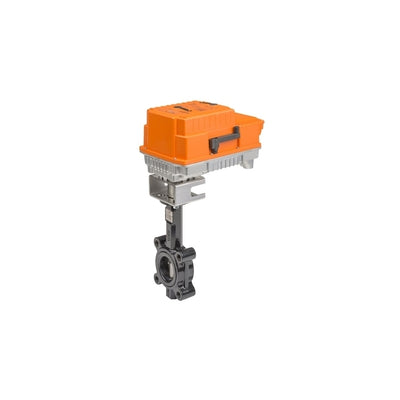

F665HD+PKRXUP-MFT-T | Butterfly Valve (BFV) | 2 1/2" | 2-way | ANSI 125 | Cv 196 Configurable Valve Actuator | Electronic fail-safe | AC 24...240 V / DC 24...125 V | 2...10 V | 2 x SPDT | terminals | BACnet MS/TP Modbus RTU MP-Bus | MFT | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F665HD+PKRXUP-MFT-T
Overview
Details for F665HD+PKRXUP-MFT-T
Butterfly Valve (BFV) | 2 1/2" | 2-way | ANSI 125 | Cv 196 Configurable Valve Actuator | Electronic fail-safe | AC 24...240 V / DC 24...125 V | 2...10 V | 2 x SPDT | terminals | BACnet MS/TP Modbus RTU MP-Bus | MFT
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 196
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 2.5" [65]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- MFT/Programmable
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- 7 mm hex crank supplied
- Power Consumption (Holding)
- 9 W
- Power Consumption (Running)
- 52 W
- Running Time (Fail-safe)
- <30 s
- Running Time (Motor)
- 35 s / 90B0
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
