F650HD+AFRX24-MFT N4 | Butterfly Valve | 2
$1,065.15
Brand: BelimoSKU: F650HD+AFRX24-MFT N4
List Price
$2,367.00
$1,065.15
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

F650HD+AFRX24-MFT N4 | Butterfly Valve | 2" | 2 Way | 115Cv | w/ Spring Return | 24V | MFT | NEMA 4 | Belimo

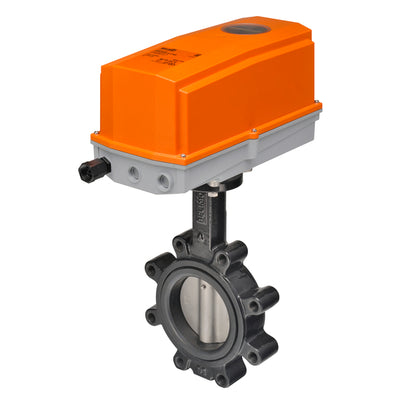

Belimo | F650HD+AFRX24-MFT N4
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F650HD+AFRX24-MFT N4

Documents and manuals

Belimo F650HD+AFRX24-MFT N4 Documents

Overview

Details for F650HD+AFRX24-MFT N4

Butterfly Valve | 2" | 2 Way | 115Cv | w/ Spring Return | 24V | MFT | NEMA 4

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
Consistent with 125
Controllable Flow Range
90B0 rotation
Cv
115
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Valve Size
2" [50]
Actuator specifications
Actuator Type
Spring return
Control Type
MFT/Programmable
Degree of Protection
IP66 NEMA 4X UL Enclosure Type 4X
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3 W
Power Consumption (Running)
7.5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
