F6350HD+SY5-110 | Butterfly Valve | 14" | 2 Way | 11917Cv | w/ Non-Spring | 120V | On/Off | SW | NEMA 4XH | Belimo

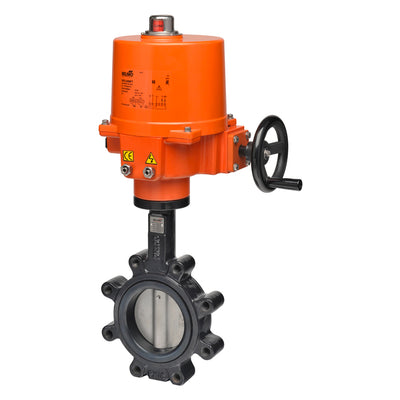

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6350HD+SY5-110
Overview
Details for F6350HD+SY5-110
Butterfly Valve | 14" | 2 Way | 11917Cv | w/ Non-Spring | 120V | On/Off | SW | NEMA 4XH
Bttrfly Valve | 14" | 2 Way | 11917 Cv | w/ Non-Spg | 120V | On/Off | SW | NEMA 4XH
Application
Valve is designed for use in ANSI flanged piping systems to meet the needs of bi-directional high flow HVAC hydronic applications with 0% leakage. Typical applications include cooling tower bypass, primary flow change-over systems, and large air-handler coil control. Valve face-to-face dimensions comply with API 609 & MSS-SP-67, Completely assembled and tested, ready for installation.
Jobsite Note
Valve assembly should be stored in a weather protected area prior to installation. Reference the butterfly valve installation instruction for additional information.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 11917
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 14" [350]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- Floating/3-point
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- Hand wheel
- Running Time (Motor)
- 26 s
- Voltage AC/DC
- AC 120 V
