F6300-300SHP+SY7-230MFT | Butterfly Valve | 12
$12,773.70
Brand: BelimoSKU: F6300-300SHP+SY7-230MFT
List Price
$28,386.00
$12,773.70
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

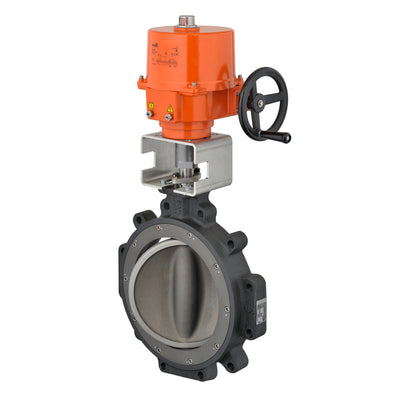

F6300-300SHP+SY7-230MFT | Butterfly Valve | 12" | 2 Way | 4428Cv | w/ Non-Spring | 230V | MFT | SW | NEMA 4XH | Belimo

Belimo | F6300-300SHP+SY7-230MFT
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6300-300SHP+SY7-230MFT

Documents and manuals

Belimo F6300-300SHP+SY7-230MFT Documents

Overview

Details for F6300-300SHP+SY7-230MFT

Butterfly Valve | 12" | 2 Way | 4428Cv | w/ Non-Spring | 230V | MFT | SW | NEMA 4XH

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
300
Controllable Flow Range
Quarter turn mechanically limited
Cv
4837
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Valve Size
12" [300]
Actuator specifications
Actuator Type
Non fail-safe
Auxiliary Switches
2 x SPDT
Control Type
MFT/Programmable
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
Hand wheel
Running Time (Motor)
59 s
Voltage AC/DC
AC 230 V
