F6100HD+DKRX24-MFT-T | Butterfly Valve | 4" | 2 Way | 600Cv | w/ Electronic Fail-Safe | 24V | MFT | Belimo

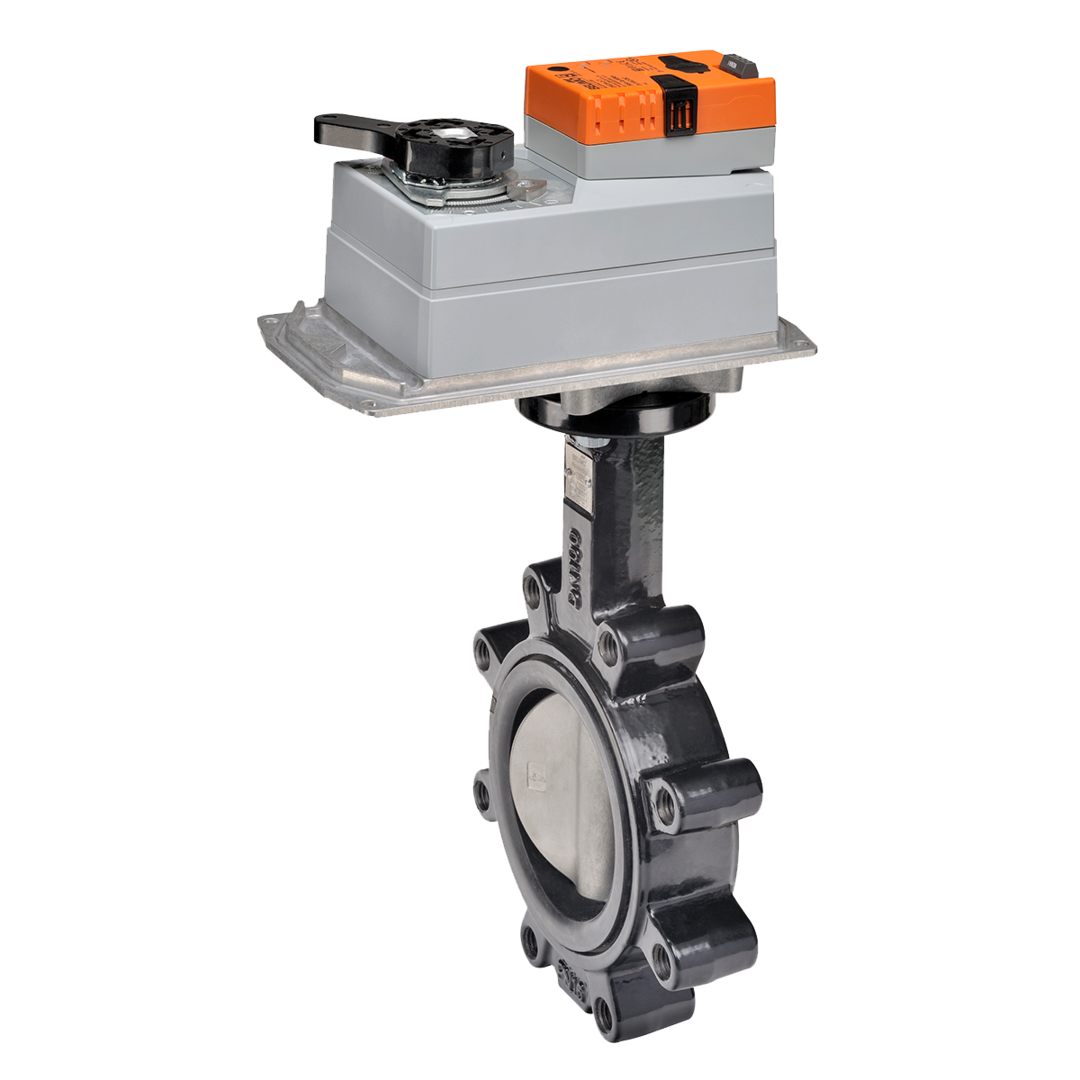

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6100HD+DKRX24-MFT-T
Documents and manuals
Belimo F6100HD+DKRX24-MFT-T Documents
Overview
Details for F6100HD+DKRX24-MFT-T
Butterfly Valve | 4" | 2 Way | 600Cv | w/ Electronic Fail-Safe | 24V | MFT
These valves are designed to meet the needs of HVAC and commercial applications requiring 0% leakage for liquids. Typical applications include chiller isolation, cooling tower isolation, change-over systems, large air handler coil control, bypass and process control applications. The large Cv values provide for an economical control valve solution for larger flow applications. Designed for use in ANSI flanged piping systems.Specifications
- Valve specifications
- ANSI Class
- Consistent with 125
- Close-off Pressure
- 200 kPa
- Controllable Flow Range
- 90B0 rotation
- Cv
- 600
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 4" [100]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- terminals
- Manual Override
- External push button
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 12 W
- Running Time (Fail-safe)
- <35 s
- Running Time (Motor)
- 150 s / 90B0
- Torque
- 90 Nm
- Voltage AC/DC
- AC/DC 24 V
